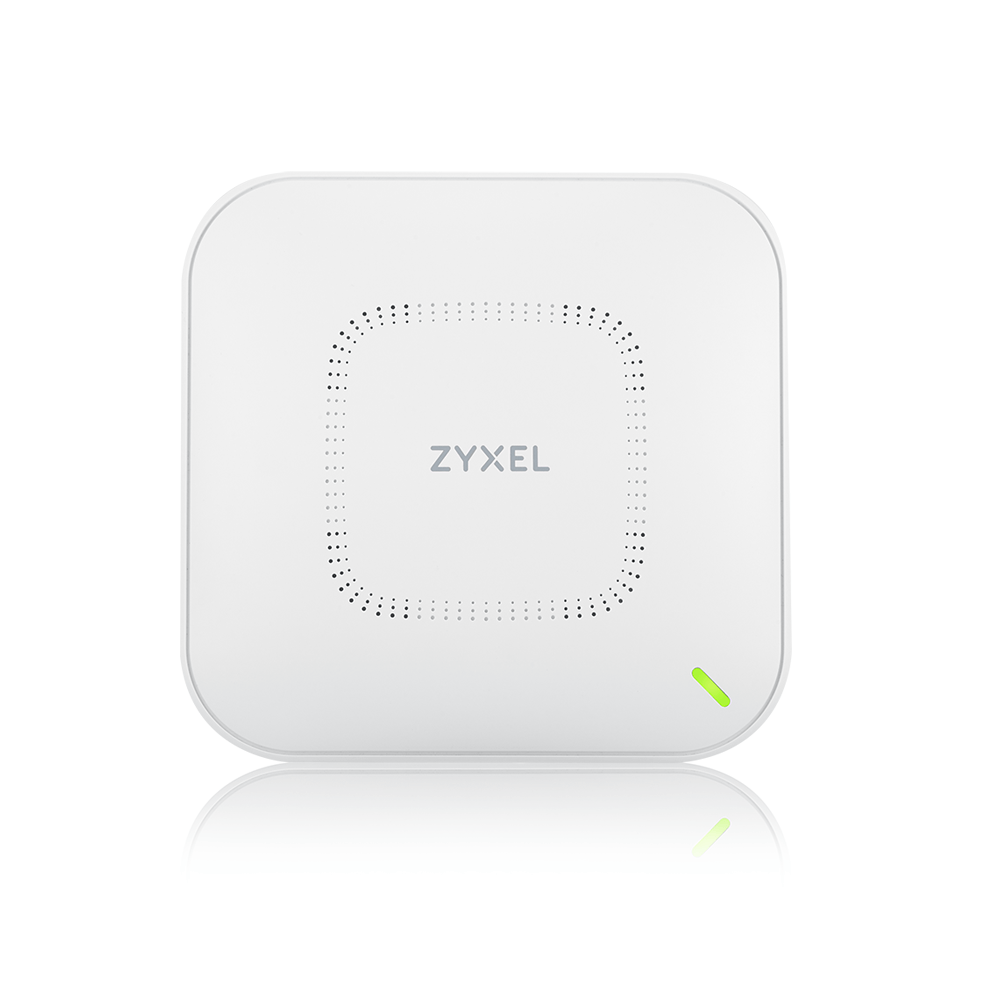

ZYXEL WAX650S 802.11ax (WiFi 6) Dual-Radio Unified Pro Access Point

รูปภาพ 1
  • รูปภาพ 1
  • รูปภาพ 2
  • รูปภาพ 3
ราคา:
17,800.00฿
รหัสสินค้า:
WAX650S
ยี่ห้อ:
Zyxel
ค่าจัดส่ง:
คำนวณเมื่อชำระเงิน
จำนวน:

คุณสมบัติของสินค้า


WAX650S
Product name
Description 802.11ax (WiFi 6) Dual-Radio Unified Pro Access Point
Wireless
Standard IEEE802.11 ax/ac/n/g/b/a
MIMO MU-MIMO
Wireless speed 2.4GHz: 1150Mbps
5GHz: 2400Mbps
Frequency band 2.4 GHz (IEEE 802.11 b/g/n)
  • USA (FCC): 2.412 to 2.462 GHz
  • Europe (ETSI): 2.412 to 2.472 GHz
5 GHz (IEEE 802.11 a/n/ac)
  • USA (FCC): 5.15 to 5.35 GHz; 5.725 to 5.850 GHz
  • European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth 20-, 40- ,80- and 160-MHz
Conducted typical transmit output power*1
(limited by local regulatory requirements)		 US (2.4GHz/5GHz): 28/28dBm
EU (2.4GHz/5GHz): 19/26dBm
RF Design
Antenna type 4x4 Smart Antenna
Antenna gain 2.4GHz: Peak Gain 3dBi
5GHz: Peak Gain 5.8dBi
Minimum Receive sensitivity -105 dBm
WLAN feature
Band Steering Yes
WDS (Standalone)*2 Yes (V6.10)
ZyMesh (AP Controller)*2 Yes (V6.10)
Smart mesh*2 Yes (V6.10)
Fast roaming Pre-authentication, PMK caching and 802.11k/v/r
DCS (Auto Channel) Yes
Load balancing Yes
Security
Wireless Security
  • WPA
  • WPA-PSK
  • WPA-Enterprise (WPA/WPA2/WPA3)
Access management
  • L2-isolation
  • MAC filtering
  • Rogue AP detection
  • EAP
  • IEEE 802.1X
  • RADIUS authentication
Networking
IPv6 Yes
VLANs Yes
WMM Yes
U-APSD Yes
DiffServ marking Yes
Management
Operating mode
  • Nebula Cloud managed
  • Controller-managed
  • Standalone
ZON Utility
  • Discovery of Zyxel switches, APs and gateways
  • Centralized and batch configurations
    • IP configuration
    • IP renew
    • Device factory reset
    • Device reboot
    • Device locating
    • Web GUI access
    • Firmware upgrade
    • Password configuration
    • One-click quick association with Zyxel AP Configurator (ZAC)
Zyxel AP Configurator
  • Batch AP configuration
  • Batch AP firmware upgrade
  • Batch AP profile backup
Zyxel Wireless Optimizer
  • WiFi AP planning
  • WiFi coverage detection
  • Wireless health management
Web UI/ CLI Yes
SNMP Yes
Physical Specifications and others
Item Dimensions (WxDxH)(mm/in.)
230 x 235 x 53.5/9.06 x 9.25 x 2.11
Weight (g/lb.)
1160/2.56
Packing Dimensions (WxDxH)(mm/in.)
282 x 266 x 79/11.1 x 10.47 x 3.11
Weight (g/lb.)
1490/3.38
Included accessories
  • Mount plate
  • Mounting screws
MTBF (hr) 180,653
Physical Interfaces
Ethernet port
  • 1 x 1/2.5/5Gbps Ethernet (PoE port)
  • 1 x 1Gbps Ethernet
Power
  • 802.3BT POE (Maximum power draw: 31W)
  • 12V DC input
Environmental Specifications
Operating Temperature
0°C to 50°C/32°F to 122°F
Humidity
10% to 95% (non-condensing)
Storage Temperature
-30°C to 70°C/-22°F to 158°F
Humidity
10% to 90% (non-condensing)
Certifications
Radio
  • FCC Part 15C
  • FCC Part 15E
  • ETSI EN 300 328
  • EN 301 893
  • LP0002
EMC
  • FCC Part 15B
  • EN 301 489-1
  • EN 301 489-17
  • EN55022
  • EN55024
  • EN61000-3-2/-3
  • EN60601-1-2
  • BSMI CNS13438
Safety
  • Safety EN 60950-1
  • IEC 60950-1
  • BSMI CNS14336-1

All specifications are subject to change without notice.

  1. Conducted typical transmit output power excludes antenna gain. For total (EIRP) transmit power, add antenna gain.
  2. WDS, ZyMesh, Smart Mesh and Industry’s Open Mesh, Easy Mesh are different mesh systems that do not work with one another.

การรับประกัน

ประกันศูนย์
