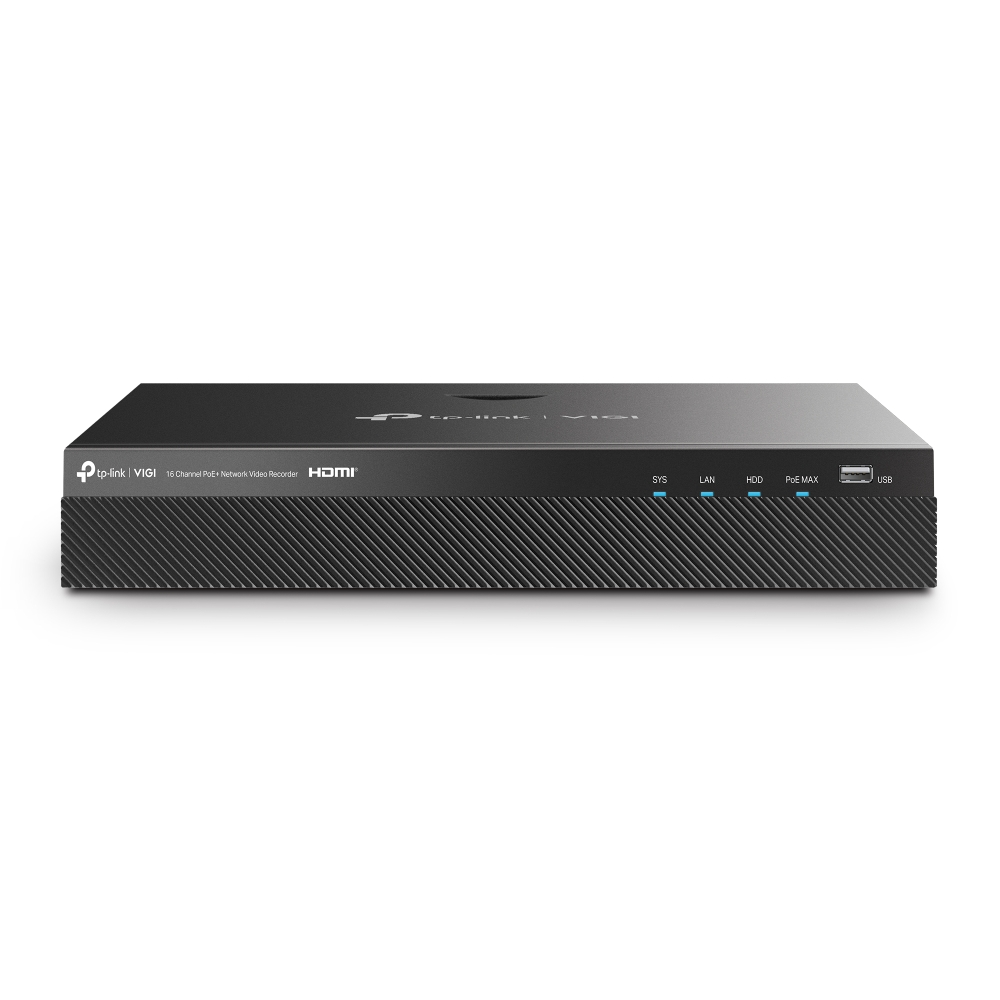

TP-LINK VIGI NVR2016H-16P 16 Channel PoE+ Network Video Recorder

  • รูปภาพ 1
  • รูปภาพ 2
  • รูปภาพ 3
ราคาเต็ม:
9,190.00฿
ราคารวม:
8,316.00฿ (คุณประหยัดเงิน 874.00฿)
รหัสสินค้า:
VIGI NVR2016H-16P
ยี่ห้อ:
ค่าจัดส่ง:
คำนวณเมื่อชำระเงิน
จำนวน:


คุณสมบัติของสินค้า

  • รองรับการแสดงภาพสดได้ 16 ช่อง และรองรับการแสดงผลวิดีโอแบบ 4K ผ่านพอร์ต HDMI
  • มีพอร์ต PoE+ จำนวน 16 ช่อง (10/100 Mbps) พร้อมงบจ่ายพลังงานรวมสูงสุด 90 วัตต์
  • รองรับการถอดรหัสวิดีโอสูงสุด 10 ช่องที่ความละเอียด 1080P (25 เฟรมต่อวินาที)
  • รองรับการเล่นวิดีโอย้อนหลังแบบซิงโครไนซ์ได้ 16 ช่อง
  • แบนด์วิธขาเข้าและขาออก 160 Mbps
  • รองรับฮาร์ดดิสก์ 2 ช่อง (SATA) และรองรับความจุสูงสุด 16 TB ต่อช่อง*
  • เทคโนโลยีการบีบอัดวิดีโอแบบ H.265+
  • รองรับการแสดงผลวิดีโอผ่าน HDMI และ VGA พร้อมกัน
  • รองรับการตรวจสอบภาพจากระยะไกล (Remote Monitoring)
Video and Audio
IP Video Input 16-Channel
Incoming Bandwidth 160 Mbps
Outgoing Bandwidth 160 Mbps
HDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
VGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
Video Output Mode HDMI/VGA Simultaneous Output
Multi-View Display 1/4/6/8/9/16
DECODING
Audio Compression G.711A/G.711U/G.726
Video Compression H.265+/H.265/ H.264+/H.264
Record Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
2CIF/CIF/QCIF
Synchronous Playback 16-Channel
Capability • 25fps:
10-ch @ 1080P

• 30fps:
2-ch@8MP, 4-ch@5MP, 5-ch@4MP, 6-ch@3MP
Record Management
Record Mode Manual Recording, Scheduling Recording, Motion Detection Recording
Playback Mode Instant Playback, Regular Playback, Tag Playback, Event Playback
Backup Mode Regular Backup, Video Clip Backup
Playback Function Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full
Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
NETWORK
Protocol UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone Access Android, iOS
Web Browser Chrome (57+), Firefox (52+), Edge (91+)
Interoperability ONVIF Profile S, CGI
External Interface
Network Interface 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface 1 Front USB 2.0 Port, 1 Rear USB 3.0 Port
Audio Interface 1-ch RCA Input; 1-ch RCA Output
Alarm In/Out 6/4
Serial Interface N/A
Power 1× DC Jack
Reset Button 1
Speaker N/A
eSATA 1
HDMI 1
VGA 1
HARD DISK
SATA 2 SATA Interfaces
Capacity Up to 16 TB Capacity for Each HDD*
PoE
Standard 802.3at/af Compliant
Interface 1- 16, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
PoE Budget 90 W Available for All PoE+ Ports, 30 W Max per Port
Alarm
General Alarm • Motion Detection
• Video Tampering
• Scene Change Detection
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Loitering Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Abnormal Sound Detection
• Smart Frame
Note: The alarm function requires the use of a camera.
Anomaly Alarm • Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
• Fan Exception
Note: The alarm function requires the use of a camera.
Alarm Linkage • Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm
Note: The alarm function requires the use of a camera.
GENERAL
Storage Temperature -40–70 °C
Storage Humidity 10%~90% RH Non-Condensing
Package Contents • VIGI Network Video Recorder
• Power Adapter
• Power Cable
• HDD Power Cables
• HDD Data Cables
• Mounting Accessories
• Mouse
• Quick Installation Guide
Working Temperature NVR: -10–55 °C
Power Adapter: 0–40 °C
Working Humidity 10%~90% RH Non-Condensing
Dimensions( W X D X H ) 13.0 × 11.2 × 1.8 in (330 × 285 × 45 mm)
Net Weight 2.2 Kg§
Gross Weight 4.2 Kg§
Power Supply 53.5V DC/2.43A
Power Consumption 6.2 W (Without Disk)
40 W (With Disk)
Certifications CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

การรับประกัน

ประกันศูนย์ 3 ปี
