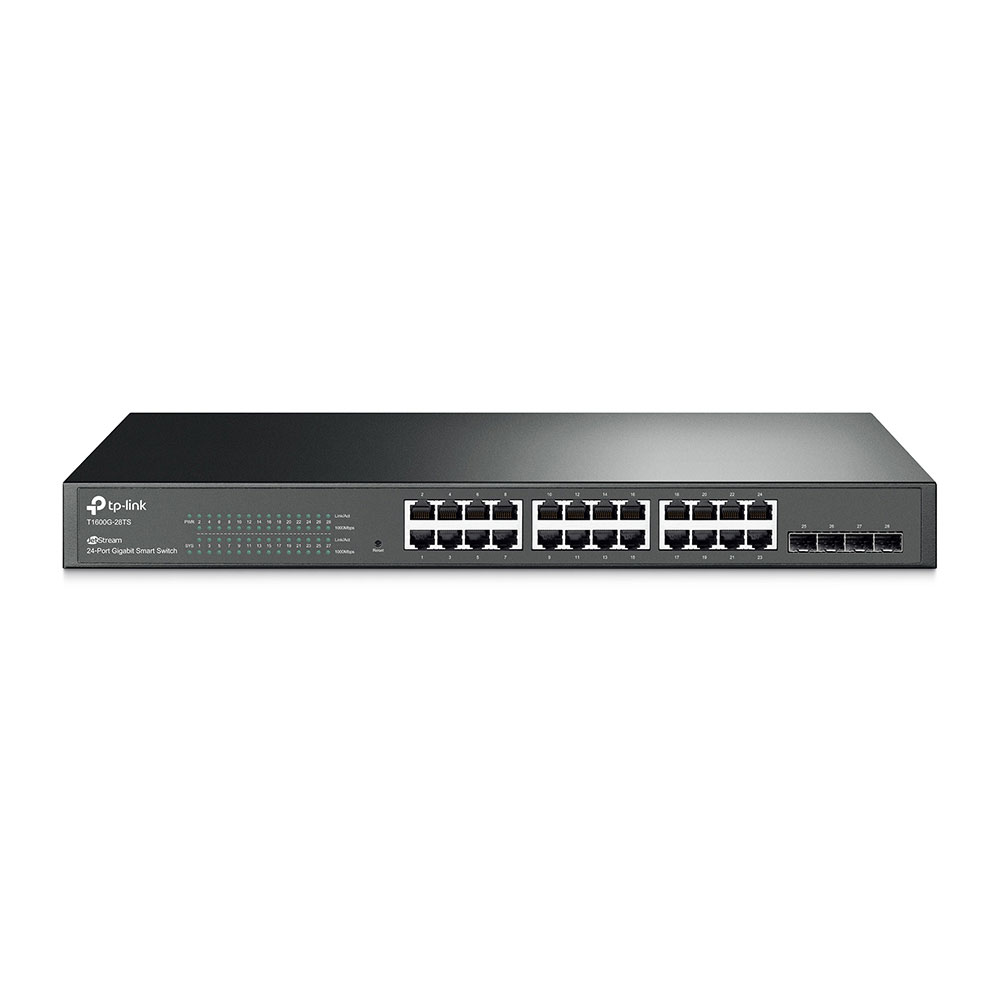

TP-LINK T1600G-28TS (TL-SG2424) JetStream 24-Port Gigabit Smart Switch with 4 SFP Slots

รูปภาพ 1
  • รูปภาพ 1
  • รูปภาพ 2
  • รูปภาพ 3
ราคาเต็ม:
5,590.00฿
ราคารวม:
4,690.00฿ (คุณประหยัดเงิน 900.00฿)
รหัสสินค้า:
T1600G-28TS
ยี่ห้อ:
TP-LINK

คุณสมบัติของสินค้า

  • Gigabit Ethernet connections on all ports provide full speed of data transferring
  • L2+ Feature——Static Routing, helps route internal traffic for more efficient use of network resourcesIntegrated security strategy including 802.1Q VLAN, Port Security and Storm control help protect LAN area investment
  • L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
  • IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery
  • WEB/CLI managed modes, SNMP, RMON and Dual Image bring abundant management features

Specifications

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z,
IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
Interface 24 10/100/1000Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
4 Gigabit SFP Slots
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable
(maximum 100m)
1000BASE-X: MMF, SMF
Fan Quantity Fanless
Power Supply 100~240VAC, 50/60Hz
Power Consumption Maximum: 23.2W (220V/50Hz)
Dimensions ( W x D x H ) 17.3*7.1*1.7 in. (440*180*44 mm)

PERFORMANCE
Bandwidth/Backplane 56Gbps
Packet Forwarding Rate 41.7Mpps
MAC Address Table 8K
Jumbo Frame 9216 Bytes

SOFTWARE FEATURES
Quality of Service Support 802.1p CoS/DSCP priority
Support 8 priority queues
Queue scheduling: SP, WRR, SP+WRR
Port/Flow- based Rate Limiting
IPv6 QoS*
Voice VLAN
L2 and L2+ Features Static Routing
DHCP Relay*
IGMP Snooping V1/V2/V3
802.3ad LACP (Up to 14 aggregation groups, containing 8 ports per group)
Spanning Tree STP/RSTP/MSTP
BPDU Filtering/Guard
TC/Root Protect
Loopback detection
802.3x Flow Control
LLDP, LLDP-MED*
VLAN Supports up to 4K VLANs simultaneously (out of 4K VLAN IDs)
MAC/Protocol-based VLAN
Access Control List L2～L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports
IPv6 ACL*
Security AAA*
Port Security
DHCP Snooping
IP-MAC-Port Binding
ARP Inspection
802.1x and Radius Authentication
SSH v1/v2
SSL v3/TLSv1
Broadcast/Multicast/Unknown-unicast Storm Control
Dos Defend
IPv6 Dual IPv4/IPv6 stack
Multicast Listener Discovery (MLD) Snooping
IPv6 neighbor discovery (ND)
Path maximum transmission unit (MTU) discovery
Internet Control Message Protocol (ICMP) version 6
TCPv6/UDPv6
IPv6 Applications DHCPv6 Client
Ping6
Tracert6
Telnet (v6)
IPv6 SNMP
IPv6 SSH
IPv6 SSL
Http/Https
IPv6 TFTP
Management Web-based GUI and CLI management
SNMP v1/v2c/v3,compatible with public MIBs and
TP-LINK private MIBs
RMON (1, 2, 3, 9 groups)
CPU Monitoring
Port Mirroring
Firmware Upgrade: TFTP & Web
System Diagnose: VCT
SYSLOG & Public MIBS
Dual Image


*These features will be supported in a future firmware release.

OTHERS
Certification CE, FCC, RoHS
Package Contents T1600G-28TS
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
System Requirements Microsoft® Windows® XP, Vista™ or Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux.
Environment Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
ดาวน์โหลด TP-LINK T1600G-28TS Datasheet

การรับประกัน

ประกันศูนย์ Limited Lifetime
