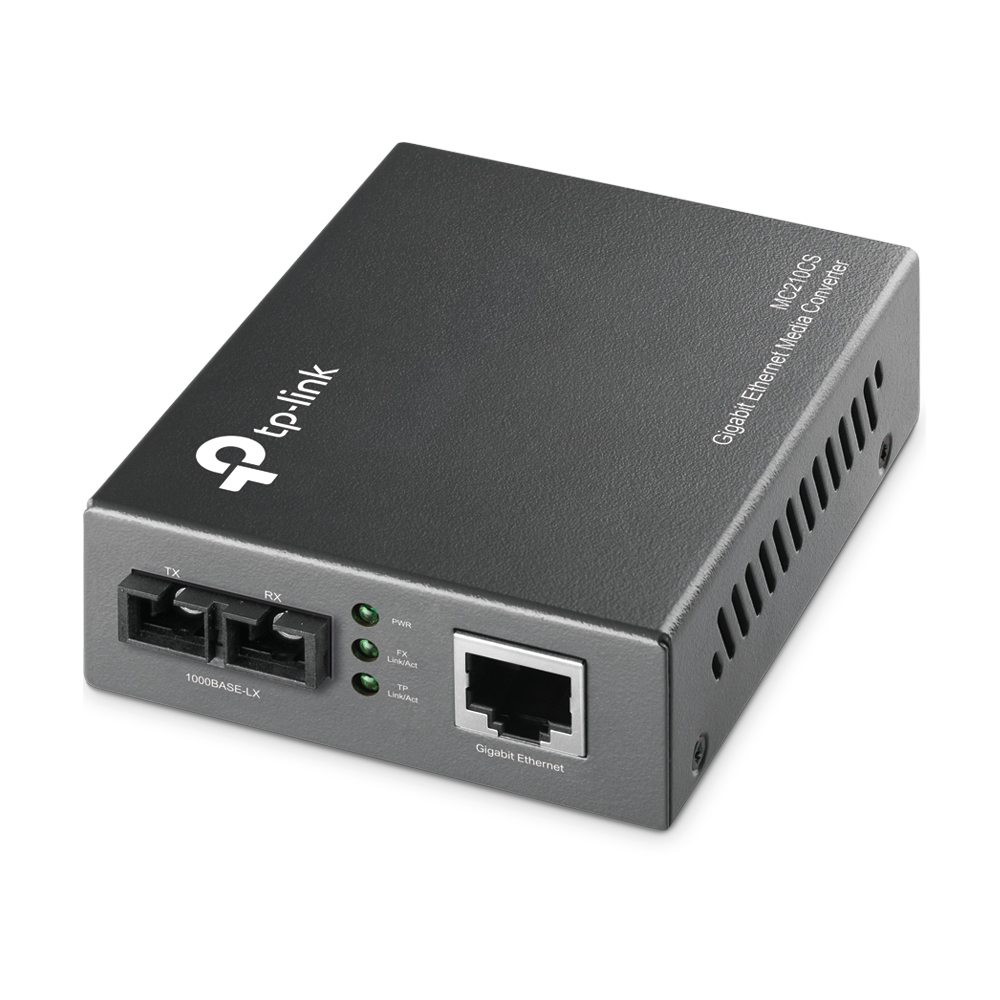

MEDIA CONVERTER & MODULE | |
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
Basic Function | Extends fiber distance up to 9.3 miles (15km) |
Ports | 1 x 1000M SC/UPC port 1 x 10/100/1000M RJ45 port (Auto MDI/MDIX) |
Wave Length | 1310nm |
Network Media 1000BASE-LX | Single-mode Fiber |
Network Media 1000BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
LED Indicators | PWR, Link/Act |
Dimensions (W*D*H) | 3.7 × 2.9 × 1.1 in. (95 × 73 × 27 mm) |
Power Supply | External Power Adapter |
Max Power Consumption | 1.8W |
Safety & Emission | FCC, CE, RoHS |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
