HARDWARE FEATURES | |
Interface | • 2× 10/100/1000 Mbps PoE++ RJ45 Ports • 6× 10/100/1000 Mbps PoE+ RJ45 Ports • 2× Gigabit SFP/RJ45 Combo Slots • Auto-Negotiation/Auto MDI/MDIX |
Fan Quantity | Fanless |
Installation | • DIN-rail mounting • Wall mounting |
Physical Security Lock | √ |
Power Supply | 12-57V 1+1 Redundant DC Power Input |
PoE Ports (RJ45) | • Standard: 802.3af/at/bt compliant • PoE++ Ports (802.3af/at/bt PoE): 2 Ports, up to 60W per port • PoE+ Ports (802.3af/at PoE): 6 Ports, up to 30W per port • PoE Budget: - 60W (Input: 12V / 7.2A - 21V / 3.7A)) - 120W (Input: 21V / 6.7A - 46V / 3.1A) - 240W (Input: 46V / 5.7A - 57V / 4.4A) |
Dimensions ( W x D x H ) | 6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm) |
Surge Protection | • ±6 kV in common mode for Ethernet ports • ±4 kV in common mode for DC power input ports |
PERFORMANCE | |
Switching Capacity | 20 Gbps |
Packet Forwarding Rate | 14.88 Mpps |
MAC Address Table | 8K |
Packet Buffer Memory | 4 Mbit |
Jumbo Frame | 15 KB |
SOFTWARE FEATURES | |
Quality of Service | • 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rate Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control |
L2 Features | • Link Aggregation - Static Link Aggregation - Up to 4 aggregation groups and up to 6 ports per group • Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP • Spanning Tree - STP (802.1d) - RSTP (802.1w) |
L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
Transmission Method | Store-And-Forward |
Management Features | |
Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Unified Configuration |
OTHERS | |
Certification | FCC, CE, RoHS |

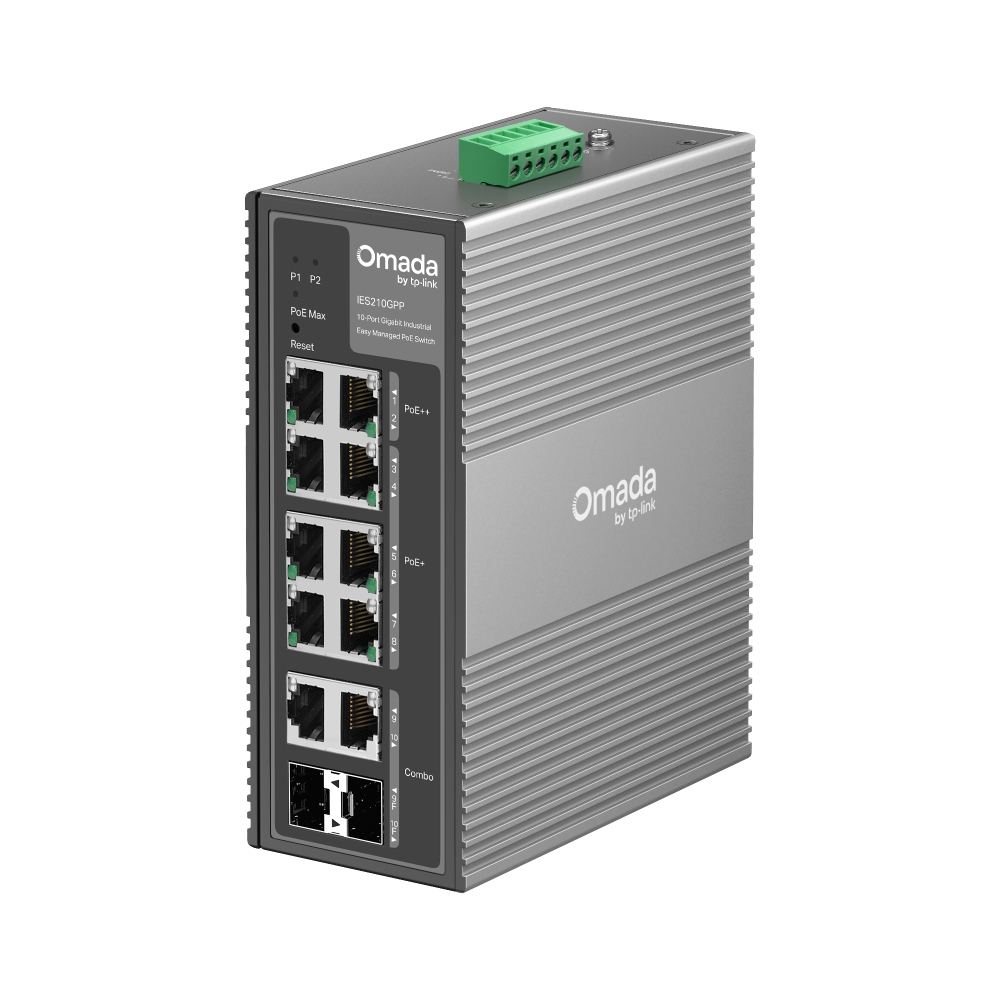

Package Content | • IES210GPP • DIN-Rail Mounting Bracket • Wall-Mounting Plates • Installation Guide |
Environment | • Operating Temperature: -40℃~75℃ (-40℉~167℉) • Storage Temperature: -40℃~85℃ (-40℉~185℉) • Operating Humidity: 5%~95% non-condensing • Storage Humidity: 5%~95% non-condensing |
