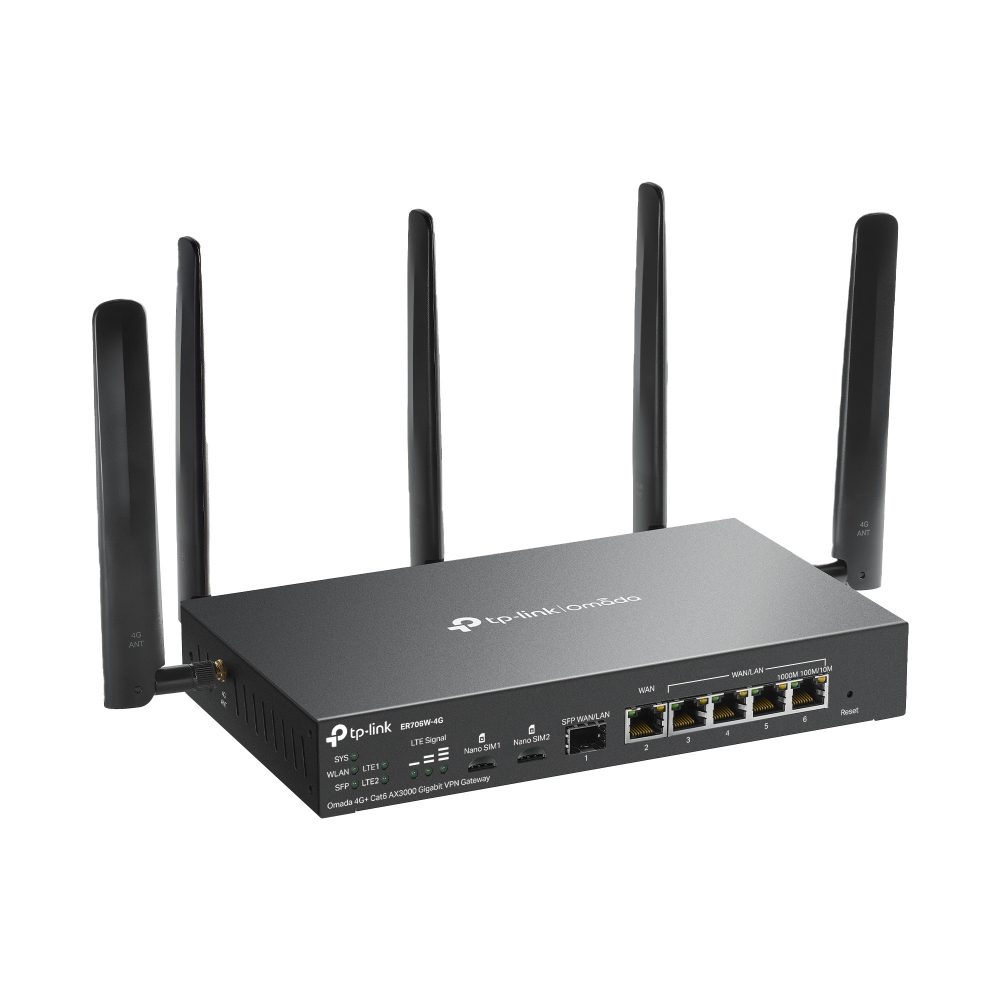

TP-LINK ER706W-4G V2 Omada 4G+ Cat6 AX3000 Gigabit VPN Gateway

  • รูปภาพ 1
  • รูปภาพ 2
  • รูปภาพ 3
  • รูปภาพ 4
  • รูปภาพ 5
ราคาเต็ม:
9,990.00฿
ราคารวม:
6,620.00฿ (คุณประหยัดเงิน 3,370.00฿)
รหัสสินค้า:
ER706W-4G V2
ยี่ห้อ:
ค่าจัดส่ง:
คำนวณเมื่อชำระเงิน
จำนวน:


คุณสมบัติของสินค้า

  • รองรับ 4G+ Cat6 ความเร็วสูงสุด 300 Mbps
  • WiFi 6 แบบดูอัลแบนด์ AX3000 ความเร็ว 2402 Mbps บนคลื่น 5 GHz และ 574 Mbps บนคลื่น 2.4 GHz
  • 1 พอร์ต WAN Gigabit และ 5 พอร์ต WAN/LAN Gigabit
  • เสาอากาศกำลังส่งสูงถอดเปลี่ยนได้ 5 ต้น
  • รองรับการจัดการแบบศูนย์กลาง (Centralized Management)
  • เทคโนโลยี Omada Mesh.
  • รองรับ VPN: IPSec, L2TP, PPTP, OpenVPN, GRE, WireGuard และ SSL VPN.
  • 4G
    Network Type LTE Band of EU:
    • 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)
    • 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
    • 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz)

    Carrier Aggregation of EU:
    B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
    B3+B3/B5/B7/B8/B20/B28/B38/B40/B41
    B5+B5/B7/B38/B40/B41
    B7+B7/B8/B20/B28/B32
    B8+B32/B38/B40/B41
    B20+B32/B38/B40
    B28+B32/B38/B40/B41
    B38+B38
    B40+B40
    B41+B41

    LTE Band of US:
    • 4G LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71
    (1950/2100/850/2600/750/750/750/1950/850/700/2350/2150/650 MHz)
    • 4G LTE-TDD: B41/B48 (2500/3600 MHz)

    Carrier Aggregation of US:
    B2+B2/B4/B5/B7/B12/B13/B14/B29/B30/B48/B66/B71
    B4+B4/B5/B7/B12/B13/B29/B30/B71
    B5+B5/B7/B25/B30/B41/B66
    B7+B7/B12/B66
    B12+B12/B25/B30/B66
    B13+B66
    B14+B30/B66
    B25+B25/B26/B41
    B26+B41
    B29+B30/B66
    B30+B66
    B41+B41
    B48+B48
    B66+B66/B71
    SIM Type 2× Nano SIM Card
    Frequency • Downlink: 300 Mbps;
    • Uplink: 50 Mbps
    SECURITY
    DPI Application control via DPI / Updated app library
    IDS/IPS Signature-based IPS/IDS threat detection
    Access Control Source/Destination IP Based Access Control
    Filtering • Web Group Filtering
    • URL Filtering
    • Web Security
    ARP Inspection • Sending GARP Packets
    • ARP Scanning
    • IP-MAC Binding
    Attack Defense • TCP/UDP/ICMP Flood Defense
    • Block TCP Scan (Stealth FIN/Xmas/Null)
    • Block Ping from WAN
    HARDWARE FEATURES
    Interface • 1 Gigabit SFP WAN/LAN Port
    • 1 Gigabit WAN Port
    • 4 Gigabit LAN/WAN Ports
    Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
    • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
    • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
    Button Reset Button
    Power Supply 12VDC / 2A Power Adapter
    Wi-Fi Frequency & Signal Rate • 2.4 GHz: 574 Mbps
    • 5 GHz: 2402 Mbps (HE160)
    Flash 128 MB NAND
    DRAM 512 MB DDR4
    LED SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)
    Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included)
    Antenna • Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas
    • LTE: Two 4.0dBi omnidirectional detachable antennas
    Mounting Desktop/Wall-Mounting
    Max Power Consumption EU: 15.4W
    US: 17.3W
    PERFORMANCE
    IPS Throughput • TCP: 229 Mbps
    • UDP: 188 Mbps
    DPI Throughput • TCP: 933 Mbps
    • UDP: 927 Mbps
    GRE • Unencrypted: 545.3Mbps
    • Encrypted: 282.6Mbps
    WireGuard VPN 387.7Mbps
    Concurrent Session 150,000
    New Sessions /Second 5,100
    NAT (Static IP) 947.1Mbps / 940.1Mbps
    NAT(DHCP) 949.2Mbps / 941.1Mbps
    NAT(PPPoE) 942.6Mbps / 941.1Mbps
    NAT (L2TP) 875.4Mbps / 892.0Mbps
    NAT (PPTP) 881.2Mbps / 895.8Mbps
    IPsec VPN Throughput • ESP-SHA1-AES256: 652.2Mbps
    • ESP-SHA256-AES256: 654.4Mbps
    • ESP-SHA384-AES256: 646.5Mbps
    • ESP-SHA512-AES256: 670.5 Mbps
    OpenVPN 115.5Mbps
    L2TP VPN Throughput • Unencrypted: 990.0Mbps
    • Encrypted: 475.0Mbps
    PPTP VPN Throughput • Unencrypted: 1177.9Mbps
    • Encrypted: 177.4Mbps
    SSL VPN Throughput 122.5Mbps
    66 Byte Packet forwarding rate 1,453,489 pps / 1,453,488 pps
    1,518 Byte Packet forwarding rate 81274 pps / 91275 pps
    WIRELESS FEATURES
    Advanced Functions • Seamless Roaming
    • Mesh (with EAP that supports Mesh)
    • OFDMA
    • Beamforming
    • MU-MIMO
    • Rate Limit: Based on SSID/Client
    • Airtime Fairness
    • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
    • Multiple SSIDs: 16 in total (8 per radio)
    Guest Network Support
    BASIC FUNCTIONS
    WAN Connection Type • Static IP
    • Dynamic IP
    • PPPoE (supports MRU Configuration)
    • PPTP
    • L2TP
    MAC Clone Modify WAN Address
    DHCP • DHCP Server
    • DHCPv6 PD Server (only in Standalone Mode)
    • DHCP Options Customization
    • DHCP Address Reservation
    • Multi-IP Interfaces
    • Multi-Net DHCP
    SMS Receive / Send SMS
    IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
    VLAN 802.1Q VLAN
    IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
    ADVANCED FUNCTIONS
    ACL IP/Port/Protocol/Domain Name Filtering
    Advanced Routing • Static Routing
    • Policy Routing
    • RIP
    • OSPF
    Bandwidth Control IP-Based Bandwidth Control
    Load Balance • Intelligent Load Balance
    • Application Optimized Routing
    • Link Backup(Timing, Failover)
    • Online Detection
    NAT • One-to-One NAT
    • Multi-Net NAT
    • Virtual Server
    • Port Triggering
    • NAT-DMZ
    • FTP/H.323/SIP/IPSec/PPTP ALG
    • UPnP
    Session Limit IP-Based Session Limit
    VPN
    GRE Only in Standalone Mode
    SSL VPN 50 Tunnels
    IPsec VPN • 100 IPSec VPN Tunnels
    • LAN-to-LAN, Client-to-LAN
    • Main, Aggressive Negotiation Mode
    • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
    • IPsec Failover
    • IKE v1/v2
    • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
    • NAT Traversal (NAT-T)
    • Dead Peer Detection (DPD)
    • Perfect Forward Secrecy (PFS)
    PPTP VPN • PPTP VPN Server
    • PPTP VPN Client (10)
    • 50 Tunnels
    • PPTP with MPPE Encryption
    L2TP VPN • L2TP VPN Server
    • L2TP VPN Client (10)
    • 50 Tunnels
    • L2TP over IPSec
    OpenVPN • OpenVPN Server
    • OpenVPN Client (5)
    • 55 OpenVPN Tunnels
    • "Certificate + Account" Mode
    • Full Mode
    WireGuard VPN • 20 Tunnels
    AUTHENTICATION
    Web Authentication • No Authentication
    • Simple Password§
    • Hotspot (Local User / Voucher§ / SMS§ / Radius§)
    • External Radius Sever
    • External Portal Sever§
    • LDAP
    MANAGEMENT
    Omada App Yes.
    Centralized Management • Omada Cloud-Based Controller
    • Omada Hardware Controller (OC300)
    • Omada Hardware Controller (OC200)
    • Omada Software Controller
    Cloud Access Yes.
    Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
    Maintenance • Web Management Interface
    • Remote Management
    • Export & Import Configuration
    • SNMP v1/v2c/v3
    • Diagnostics (Ping & Traceroute)
    • NTP Synchronize
    • Port Mirroring
    • CLI (only in Standalone Mode)
    • Syslog Support
    Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller.
    Management Features • Automatic Device Discovery
    • Intelligent Network Monitoring
    • Abnormal Event Warnings
    • Unified Configuration
    • Reboot Schedule
    • Captive Portal Configuration
    OTHERS
    Certification CE, FCC, RoHS
    Package Contents • ER706W-4G
    • Power Adapter
    • Quick Installation Guide
    System Requirements • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11
    • MAC OS, NetWare, UNIX or Linux
    Environment • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
    • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
    • Operating Humidity: 10% to 90% non-condensing
    • Storage Humidity: 5% to 90% non-condensing

    การรับประกัน

    ประกันศูนย์ 3 ปี
