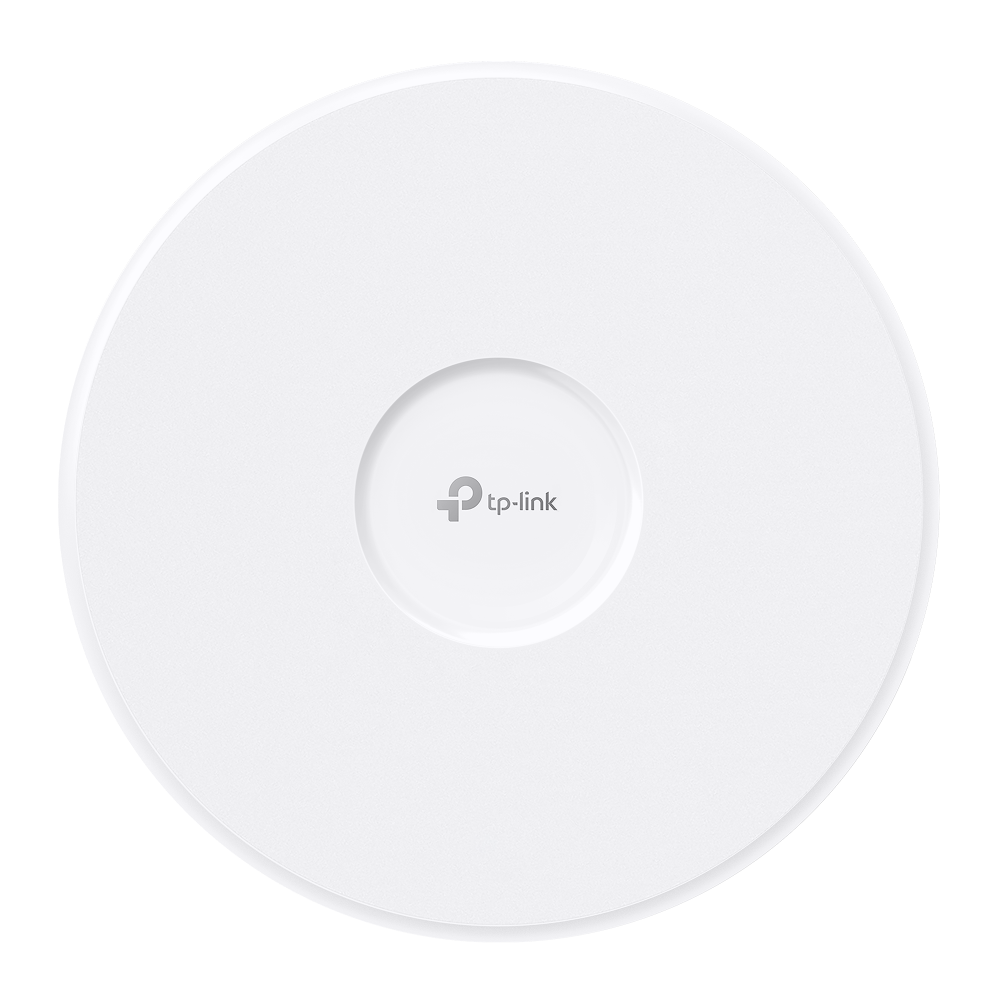

TP-LINK EAP783 BE22000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

  • รูปภาพ 1
  • รูปภาพ 2
  • รูปภาพ 3
  • รูปภาพ 4
ราคาเต็ม:
39,900.00฿
ราคารวม:
31,960.00฿ (คุณประหยัดเงิน 7,940.00฿)
รหัสสินค้า:
EAP783
ยี่ห้อ:
ค่าจัดส่ง:
คำนวณเมื่อชำระเงิน
จำนวน:


คุณสมบัติของสินค้า

  • BE22000 Tri-Band Wi-Fi 7 (11520 Mbps on 6 GHz + 8640 Mbps on 5 GHz + 1376 Mbps on 2.4 GHz).
  • A clear 6 GHz band brings cleaner and wider band resources.
  • 2× 10G ports unlock the full potential of Wi-Fi 7.
  • 320 MHz bandwidth enables many more simultaneous transmissions.
  • Multi-Link Operation and Multi-RUs ensure the high performance of your network.
  • Advanced Functions: Centralized management, mesh, and Seamless roaming.
GENERAL
Weight Net Weight:1384.6g
HARDWARE FEATURES
Interface 2× 10G Ethernet Ports (20G Aggregation Speed)
Button Reset
Power Supply • 802.3bt PoE++
• 12V DC

Note:Power adapter is not included.
Power Consumption 39W
Dimensions ( W x D x H ) 11.0 x 11.0 x 1.8 in (280 x 280 x 46.5 mm)
Antenna Type Internal Omni
• 2.4 GHz: 4× 4 dBi
• 5 GHz: 4× 5.5 dBi
• 6 GHz: 4× 5 dBi
Bluetooth V5.2
Mounting Ceiling / Wall Mounting (Kits Included)
WIRELESS FEATURES
Coverage 200㎡ (2150 ft²) §
Concurrent Clients 760+**
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be
Frequency 6 GHz, 5 GHz, and 2.4 GHz
Signal Rate • 6 GHz: Up to 11520 Mbps
• 5 GHz: Up to 8640 Mbps
• 2.4 GHz: Up to 1376 Mbps
Wireless Functions • MLO
• 4K-QAM
• MU-MIMO (4x4 MU-MIMO DL/UL)
• HE320 (320 MHz Bandwidth)
• Mesh§
• Seamless Roaming(802.11k/v/r)
• Automatic Channel Selection and Power Adjustment*
• BSS Coloring
• UL/DL OFDMA
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS
• Wireless Statistics
• Wireless Schedule
• Reboot Schedule
• RADIUS Accounting
• MAC Authentication
• Static IP/Dynamic IP
Wireless Security • PPSK
• VLAN
• Access Control
• Rogue AP Detection
• Captive Portal Authentication
• Maximum number of MAC Filter: 4,000
• Wireless Isolation between Clients
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE
Transmission Power • FCC: <28 dBm (2.4 GHz)
<28 dBm (5G band 1&band 4)
<24 dBm (5G band 2&band 3)
<28 dBm (6 GHz)
MANAGEMENT
Omada App Yes
Restore & Backup Yes
Firmware update via Web Yes
NTP Yes
Centralized Management • Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Require the use of OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
SSH Yes
Web-based Management Yes
OTHERS
Certification CE, FCC, RoHS, IC
Package Contents • EAP783
• Installation Guide
• Ceiling/Wall Mounting Kits
Environment • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing

การรับประกัน

ประกันศูนย์ Limited Lifetime
