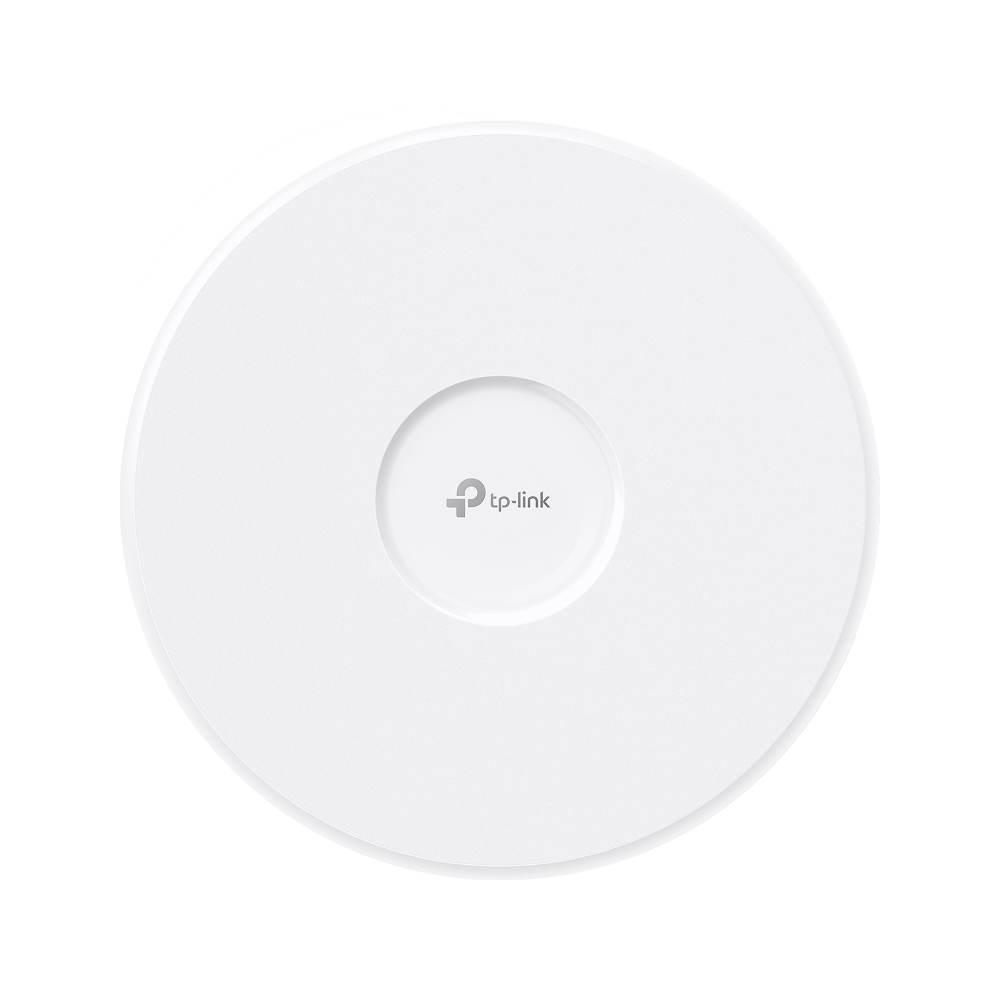

TP-LINK EAP773 BE11000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

รูปภาพ 1
  • รูปภาพ 1
  • รูปภาพ 2
  • รูปภาพ 3
  • รูปภาพ 4
ราคาเต็ม:
25,900.00฿
ราคารวม:
24,600.00฿ (คุณประหยัดเงิน 1,300.00฿)
รหัสสินค้า:
EAP773
ยี่ห้อ:
TP-LINK
ค่าจัดส่ง:
คำนวณเมื่อชำระเงิน
จำนวน:

คุณสมบัติของสินค้า

  • BE11000 Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 4320 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be a problem.
  • 1× 10G Port: Unlock the full potential of Wi-Fi 7.
  • Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.
  • 320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.
  • Low Latency and Interference:  Multi-Link Operation, and Multi-RUs ensure high performance of your network.
  • Advanced Functions：Supports centralized management, mesh, and AI roaming.
HARDWARE FEATURES
Interface 1× 10G Ethernet Port
Button Reset
Power Supply 802.3bt PoE or 12V/2.5A DC
Power Consumption Support Smart Power Comsuption Management
• 25.94 W (802.3bt, full functionality);
• 22.57 W (12/2.5A, full functionality);
• 23.4 W (802.3at decrease 6GHz Power);
• 10.1 W (802.3af, radio off, only main chip and LAN working)
Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)
Antenna Type • 2.4 GHz: 2× 3.0 dBi
• 5 GHz: 2× 3.0 dBi
• 6 GHz: 2× 3.0 dBi
Bluetooth 1 × 4.0 dBi, Bluetooth 5.2
*Firmware update may be required.
Mounting Ceiling / Wall Mounting (Kits Included)
WIRELESS FEATURES
Coverage 140㎡(1500 ft²)§
Wireless Client Capacity 2 GHz: 128**
5 GHz: 128**
6 GHz: 128**
Concurrent Clients 380+**
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/be
Frequency 6 GHz, 5 GHz, and 2.4 GHz
Signal Rate 574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)†
Wireless Functions • MLO‡
• 4K-QAM‡
• MU-MIMO‡
• HE320‡
• Mesh△
• BBS Coloring‡
• OFDMA‡
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS:24(8 on each band)
• Wireless Schedule
• Reboot Schedule
• QoS(WMM)
• Rate Limit
• Static IP/Dynamic IP
• RADIUS Accounting
• MAC Authentication
Wireless Security • Captive Portal Authentication△
• Access Control
• Maximum number of MAC Filter: 4,000
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power < 25 dBm (2.4 GHz)
< 25 dBm (5 GHz)
< 23 dBm (6 GHz)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud Access Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Yes
Web-based Management Yes
OTHERS
Certification CE, FCC, RoHS, IC
Package Contents • EAP773
• Installation Guide
• Ceiling/Wall Mounting Kits
Note: Power Adapter is NOT included.
Environment • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);
• Operating Humidity: 10%–90% non-condensing;
• Storage Humidity: 5%–90% non-condensing;

การรับประกัน

ประกันศูนย์ Limited Lifetime
