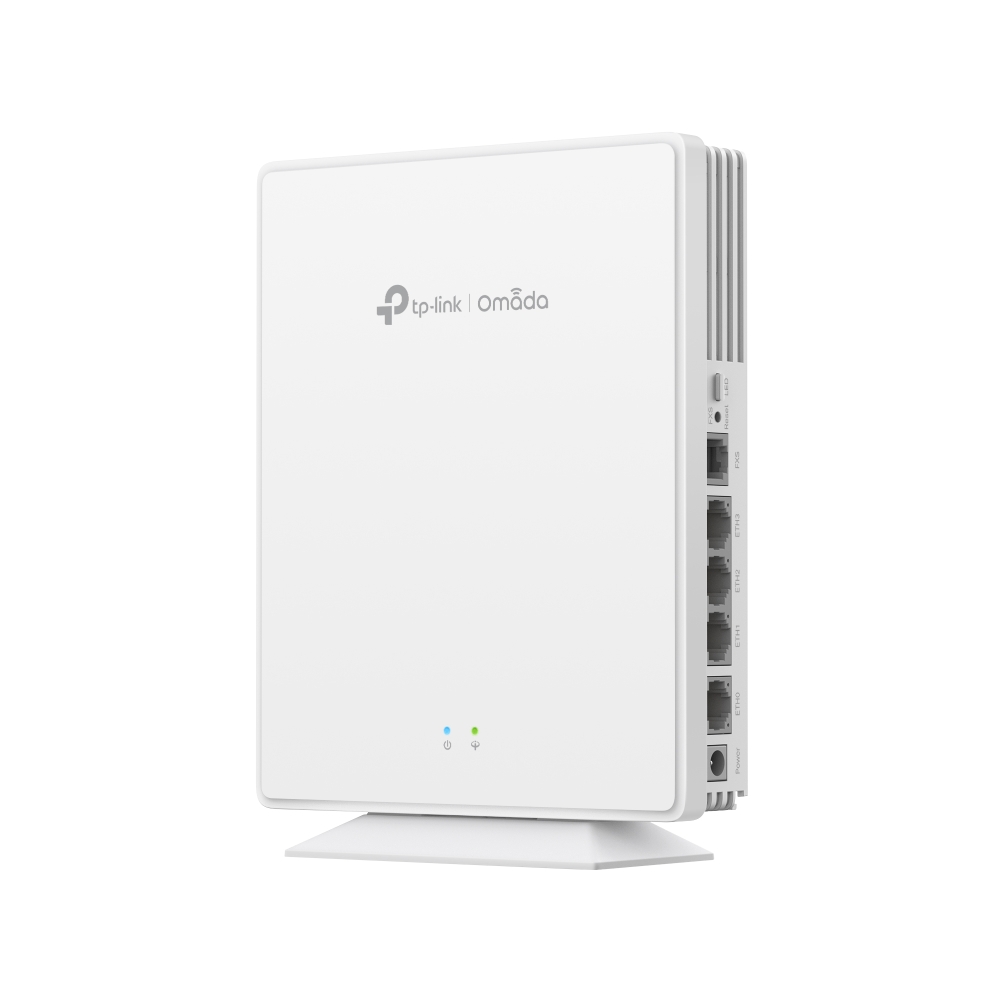

TP-LINK EAP610GP-Desktop Omada AX1800 Wi-Fi 6 Desktop GPON Access Point

รูปภาพ 1
  • รูปภาพ 1
  • รูปภาพ 2
  • รูปภาพ 3
  • รูปภาพ 4
  • รูปภาพ 5
ราคาเต็ม:
4,490.00฿
ราคารวม:
3,690.00฿ (คุณประหยัดเงิน 800.00฿)
รหัสสินค้า:
EAP610GP-Desktop
ยี่ห้อ:
TP-LINK
ค่าจัดส่ง:
คำนวณเมื่อชำระเงิน
จำนวน:

คุณสมบัติของสินค้า

  • Seamless 1.8 Gbps WiFi 6 Speeds: 1201 Mbps on 5 GHz & 574 Mbps on 2.4 GHz
  • 1× GPON Port for High-Speed and Ultra-Range Access
  • Ultra-Broadband WiFi 6: MU-MIMO, Seamless Roaming
  • One Fiber for Multiple Services: Wired, Wireless, Voice, VoIP, Data, and HD Video Services
  • VoIP Calls:  Support multiple VolP accounts and various call features, exceeding traditional landlines
  • Easy Use: One-Click Pairing and Automatic Adoption
  • Smart O&M: PPSK and Multiple Portals
  • High Flexibility: Support both desktop and wall mounting setups
  • Centralized Management: Integrates with the Unified Optical Solution
HARDWARE FEATURES
Interface • 1x GPON Port
• 1x FXS Port
• 4x Gigabit RJ45 Ports (One Supporting 802.3af PoE Out)
GPON Interface • Port Type: SC-APC
• Standards and Protocols: ITU-984.x, G.988, Class B+
• Data Rate: 2.488 Gbps (Downstream); 1.244 Gbps (Upstream)
• Fiber Type: 9/125 um Single mode
• Max. Cable Length: 20 km
Button • Reset
• LED
Power Supply 53.5V/0.81A DC
Power Consumption 17.3W (PoE Out Off)
Weight 492g
Dimensions ( W x D x H ) 6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm)
Antenna Type Internal Omni
• 2.4 GHz: 2× 5 dBi
• 5 GHz: 2× 4.5 dBi
Mounting Desktop / Wall mouting (Kits included)
WIRELESS FEATURES
Coverage 140㎡(1500ft²)**
Concurrent Clients 120+*
Wireless Standards IEEE 802.11 a/b/g/n/ac/ax
Frequency 2.4 GHz and 5 GHz
Signal Rate • 5 GHz: 1201 Mbps†
• 2.4 GHz: 574 Mbps
Wireless Functions • 2×2 (2.4G & 5G) MU-MIMO‡
• HE80 (80 MHz Bandwidth)‡
• OFDMA‡
• Seamless Roaming §
• Multiple SSIDs (16 SSIDs, 8 on each band)
• Enable/Disable SSID Broadcast
• Enable/Disable Wireless Radio
• Guest Network
• Automatic Channel Assignment
• Beamforming
• Rate Limit
• Band Steering
• Load Balance
• Airtime Fairness
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS (WMM)
• RADIUS Accounting
• MAC Authentication
• Reboot Schedule
• Wireless Schedule and Statistics
• Static IP/Dynamic IP
Wireless Security • Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• VLAN
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power • CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, band1 & band2, EIRP)
<27 dBm(5 GHz, band3, EIRP)
MANAGEMENT
Omada App Yes
Centralized Management • Omada Hardware Controller (OC300, OC200)
• Omada Software Controller
• Omada Cloud-Based Controller
Cloud Access Yes. Require the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog System Log
SSH Yes
Web-based Management Yes
Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller.
OTHERS
Certification CE, FCC, RoHS, IC
Package Contents • EAP610GP-Desktop
• Desktop/Wall Mounting Kit
• Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

การรับประกัน

ประกันศูนย์ Limited Lifetime
