Specifications | |
---|---|
Wireless Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Frequency | 2.4 - 2.4835GHz |
WiFi Speeds | 11n: Up to 300Mbps (Dynamic) 11g: Up to 54Mbps (Dynamic) 11b: Up to 11Mbps (Dynamic) |
Reception Sensitivity | 270M: -70dBm@10% PER 130M: -74dBm@10% PER 108M: -77dBm@10% PER 54M: -76dBm@10% PER 11M: -90dBm@8% PER 6M: -92dBm@10% PER 1M: -97dBm@8% PER |
Transmission Power | <20dBm |
Wireless Security | WPA-PSK / WPA2-PSK |
Wireless Functions | WDS Bridge |
Dimensions | 114 x 94 x 26 mm |
Interfaces | 2 × 10/100Mbps LAN Ports 1 × 10/100Mbps WAN Port |
Button | RESET |
External Power Supply | 5VDC/0.6A |
Antenna Type | 2 × 5dBi Fixed Omni-Directional Antennas |
WAN Type | Dynamic IP / Static IP / PPPoE / L2TP / PPTP |
Management | Parental Control Access Control Local Management Remote Management |
DHCP | Server |
Port Forwarding | Virtual Server, UPnP, DMZ |
Dynamic DNS | DynDNS, NO-IP |
Firewall Security | IP and MAC Address Binding |
Protocols | IPv4, IPv6 |
Guest Network | 2.4GHz Guest Network |
Certifications | CE, ROHS |

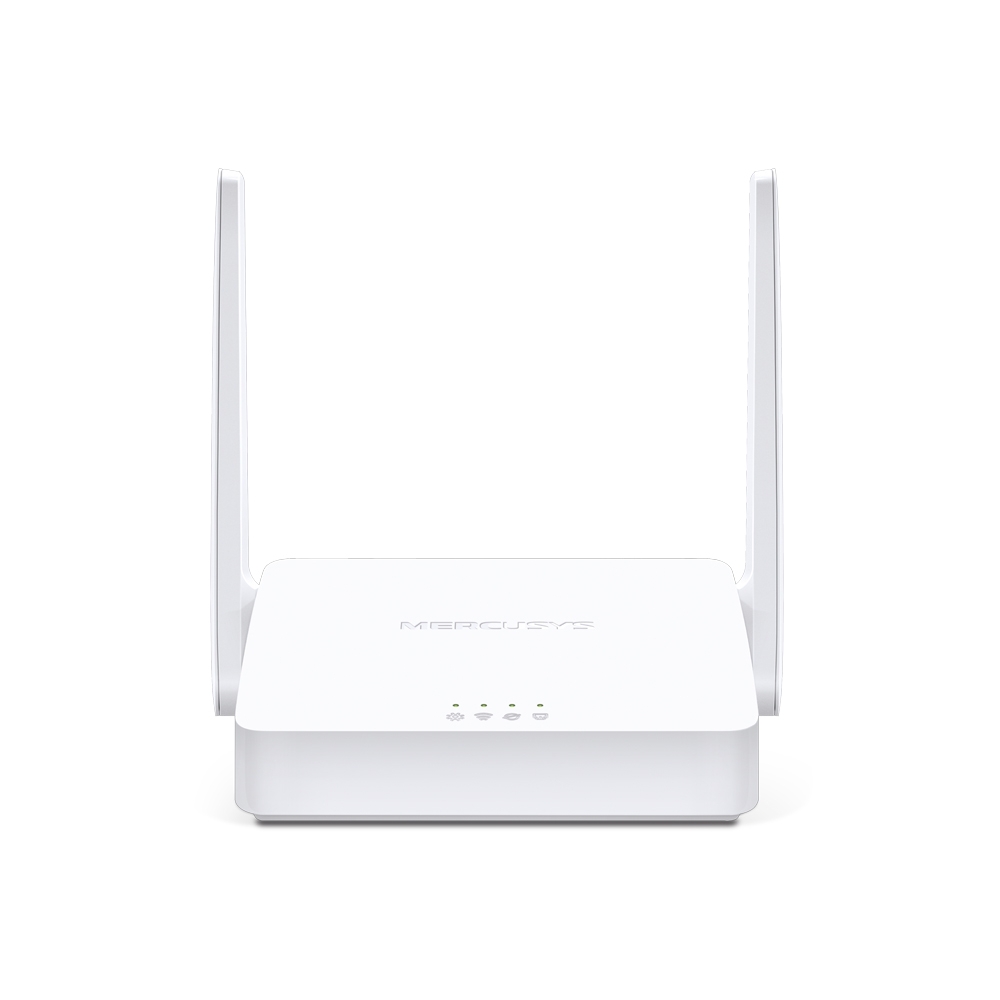

Package Contents | • 300Mbps Wireless N Router (MW301R) • Power Adapter • Quick Installation Guide • Ethernet Cable |
Environment | Operating Temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F) Storage Temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F) Operating Humidity: 10% ~ 90%, non-condensing Storage Humidity: 5% ~ 90%, non-condensing |
