Dimensions | 171*98*27 mm |
---|---|
PoE Ports | RJ45 |
Standard | Compliant with 802.3 af/at Powered Devices |
PoE Ports | Port 1 - Port 8 |
PoE Power Budget | 65 W |
Interfaces | 10× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX |
External Power Supply | External Power Adapter (Output: 53.5V/1.31A) |
Installation | Desktop, Wall Mount |
Standards and Protocols | IEEE 802.3x Flow Control |
Data Rates | 10/100 Mbps at Half Duplex, 20/200 Mbps at Full Duplex |
Jumbo Frame | 2 KB |
Mac Address Table | 2K |
Max Power Consumption | 2.96W (220 V / 50 Hz, no PD connected) |
Max Power Consumption with PD | 77.52W (220 V / 50 Hz, with 65W PD connected) |
Max Heat Dissipation | 10.064 BTH/h (no PD connected), 263.568 BTH/h (with 65W PD connected) |

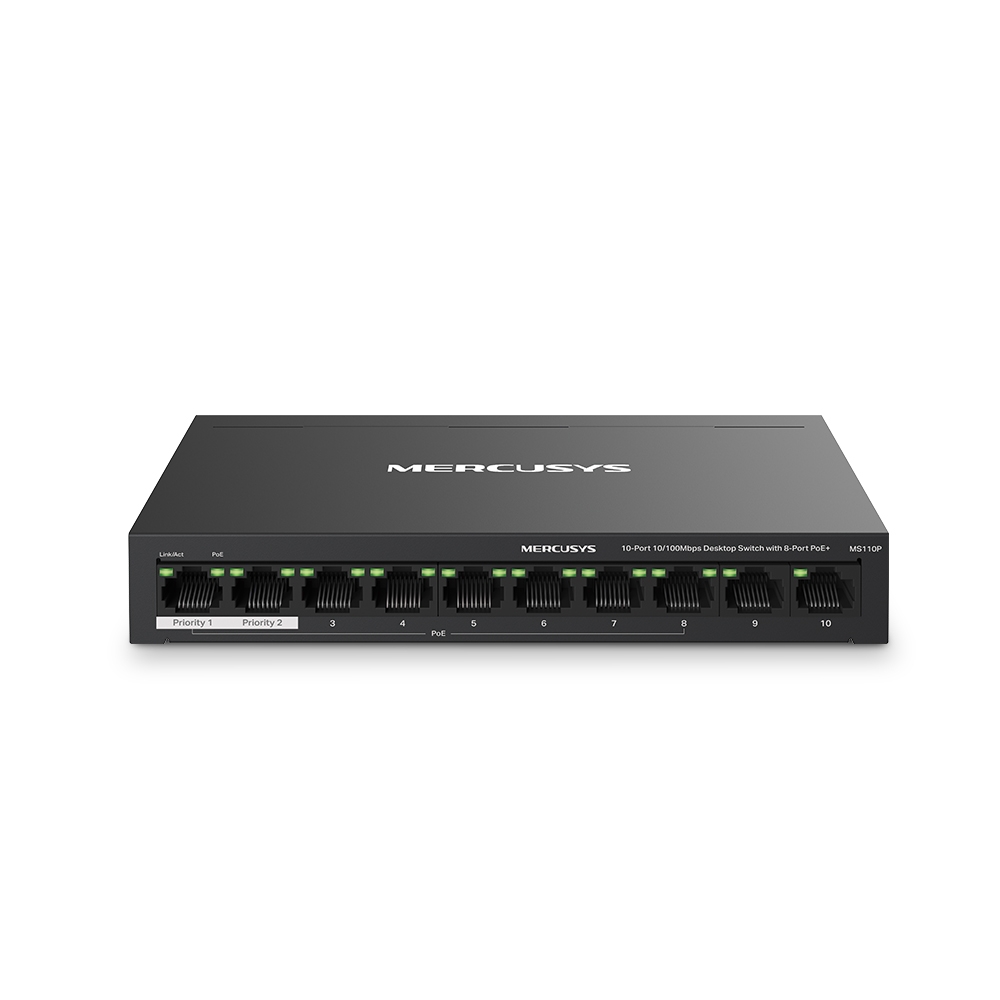

Package Contents | • 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110P) • Power Adapter • Quick Installation Guide |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% RH non-condensing Storage Humidity: 5%~95% RH non-condensing |
