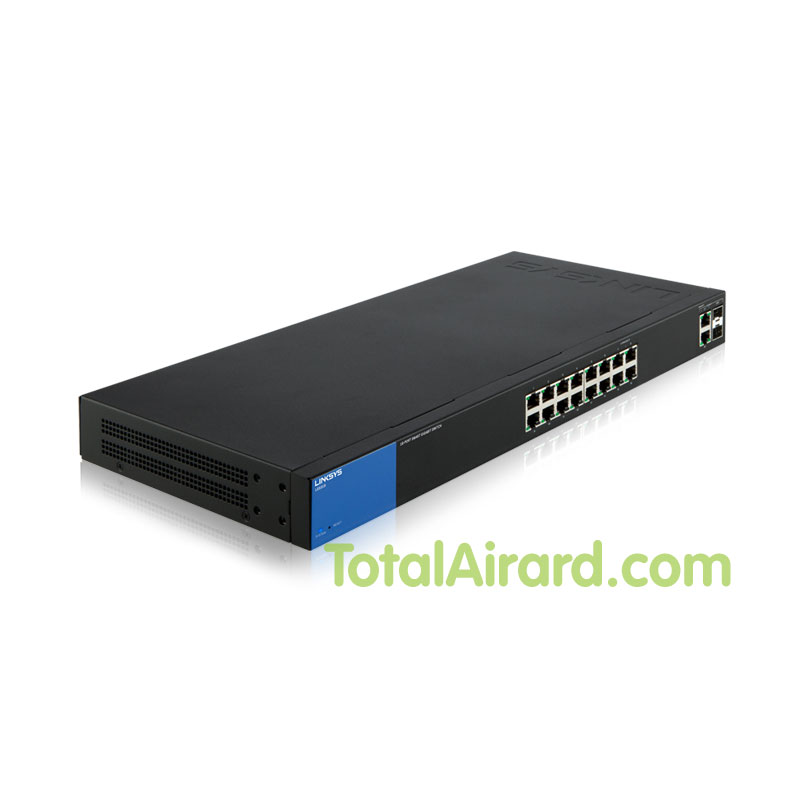

• Linksys LGS318 เป็น L2 Gigabit Switch มี 18 ช่อง ความเร็ว 100/1000 Mbps
• Memory:

  • 128MB
• Forwarding Rate:

  • 26.79 Mpps
• Switching Capacity:

  • 36 Gbps
• Jumbo Frame (FE, GE):

  • 9K
• Spanning Tree:

  • IEEE 802.1d Spanning Tree, IEEE 802.1s Multiple Spanning Tree, IEEE 802.1w Rapid Spanning Tree
• Link Aggregation:

  • IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group
• VLAN:

  • Port-based and 802.1q tag-based VLANs, Management VLAN, Guest VLAN support, Dynamic VLAN assignment via Radius server with 802.1x client authentication
  • Number of VLANs Supported:
    128 active VLANs (4,096 range)
• Auto Voice VLAN:

  • VLAN Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
• IGMP Snooping:

  • IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups
• HOL Blocking Prevention:

  • Head-of-line (HOL) blocking prevention
• Port Mirroring:

  • Traffic on multiple ports (up to four ports) can be mirrored to another port for analysis with a network analyzer
• Security Features:

  • 802.1x Radius authentication
  • DHCP snooping
  • IP-MAC binding
  • Port security supports limited dynamic lock and locked MAC address
  • Management access control
• Storm Control:

  • Broadcast, flooding, and multicast
• RMON:

  • Embedded remote monitoring (RMON) software agent support for enhanced traffic management, monitoring, and analysis
• Management Interface:

  • HTTP
  • HTTPS
• Other Management:

  • Telnet (Menu CLI), DHCP client, system log, configuration unload and backup via HTTP or TFTP, PING, dual images, SNTP
• SNMP:

  • Version 1
  • Version 2c
• Firmware Upgrade:

  • Web Browser (HTTP/HTTPS)
  • TFTP
• QoS - Class of Service:

  • Port-based, 802.1p priority-based, IPv4/v6 IP DSCP-based
• Combo Ports (RJ45 + SFP):

  • 2 combo on ports g17, g18
• Copper FE/GE Ports (RJ45):

  • g01–g08, g09–g16
• Green Power Mode:

  • EEE+, Short Reach + Energy Detect
• QoS - Priority Levels:

  • 4 hardware queues
• QoS - Scheduling:

  • Priority queuing and weighted round robin (WRR)
• Total System Ports:
  • 18GE
• Mac Addresses:
  • 8K

ดาวน์โหลด Linksys LGS318 Datasheet
