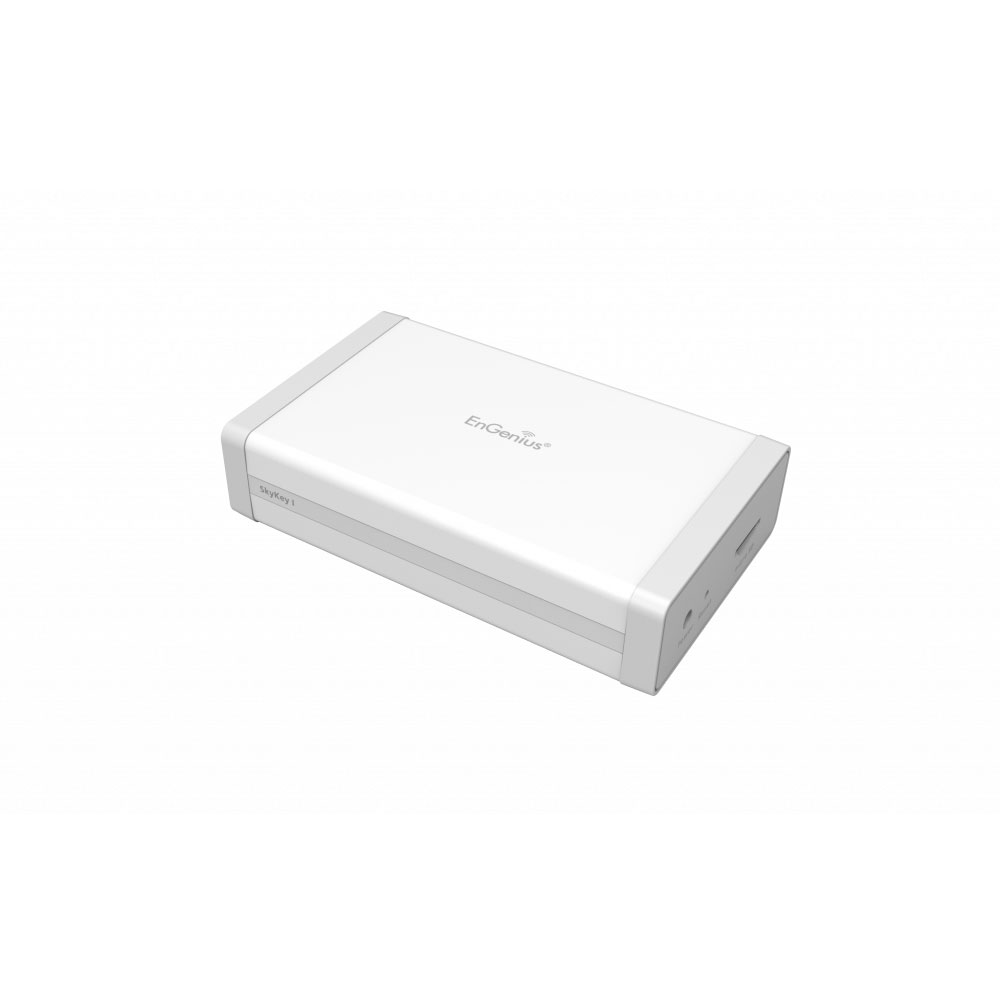

The SkyKey 1 can be applied to manage EnGenius Wireless Access Points and switches from both remote and local sites intuitionally and easily. The solution is also supported to power by either 802.3af/at PoE (Power Over Ethernet) or DC12V power .

• Built-in Qualcomm Quad-core CPU with sup-porting powerful computing for driving and boosting performance effectively.
• Compliance with 802.3af/at or DC12V Input power source
• 2 x 10/100/1000 Mbps Ethernet ports that use to network with switches or servers easi-ly.
• Expanding Micro SD slot for backing up con-figuration of this SkyKey.
• Built-in management software to organize systemic and distributed managerial system for controlling 100 sets of EnGenius Access Points directly.
• Built-in 1GB DRAM and 4GB eMMC flash stor-age to control and to manage statistical infor-mation up to 7 days.

Hardware Specification
CPU:
Model: Qualcomm IPQ4019
Architecture: 32-bit
Clock Rate: ARM A7 Quad Core 717MHz
Hardware Encryption Acceleration: Yes
Memory:
System Memory: 1GB DDR3
Storage:
eMMC: 4GB (MLC)
Interfaces and LEDs
2 x 10/100/1000 Mbps RJ45 ports (1 x PoE)
1 x Micro SD Slot
1 x DC-Input Jack
1 x Reset Button
1 x Power LED (Orange)
2 x LAN LED (Green)

Management Features
Controlling capability
Managing Qty of Access Points
Maximum 50 pcs of EnGenius Access Points
Reserving duration of managerial data
Maximum 30 days if users control and manage 50pcs of Access Points on a SkyKey solution. Each Access Point has networked with 40 client devices simultaneously.
Dashboard
Managed Access Points / Switches
Users can realize status of Access Points and Switches
System Resource Usage
CPU: Usage (%) of CPU for this SkyKey
Memory: Usage (%) of Memory for this SkyKey
Disk: Usage (%) of Disk for this SkyKey
System Overview
Users can realize ezMaster software version on this SkyKey
Recent Projects
Updated or revised projects are listed in the right side bar.
Monitoring
Rogue AP Detection
Enable the function to detect the fake access points in the environment.
Active Clients
The page will show clients’ information including client name, getting IP, MAC address, Client OS*, SSID, Band, Tx, Rx, and RSSI information.
Statistics Information
Access Point
Top ten traffic for the Managed AP. We can reserve data up to 30 days.
Wireless Client Information
Top Fifty (50) traffic for wireless client devices.
Visualization
Topology View
Topology view could assist users to realize status of your network and then find abnormal devices for trouble shooting easily.
Map View
Enter this view to find locations of Access Points or switches on global view of google map. You may also filter one of APs from google map easily.
Floor Plan View
Upload a floor plan for this project. Users can put a known floor plan and then place Access Points or switches on this view.
Mesh View
Mesh view also can be realize the overall topology for mesh.
Hotspot Service
Cpative Portal profile setting will be set a profile to apply on one of SSIDs. Users can configure authentication types, session of connecting clients, redirect page types and redirect behavior
System Overview
Users can realize ezMaster software version on this SkyKey
Recent Projects
pdated or revised projects are listed in the right side bar.
Maintenance
Bulk Update
Throughout this function to proceed mass upgrade procedure on a specific AP.
Bulk Update (Switch)
Throughout this function to proceed mass upgrade procedure on a specific switch.
AP Remote Log
Synchronize clients’ information of AP to a remote log server.
Environmental & Physical
Operating:
Temperature: 0°C~40°C (32°F~104°F)
Humidity: 0%～90% typical
Storage:
Temperature: -40°C~80°C (-40°F~176°F)
Humidity: 0%～90% typical
