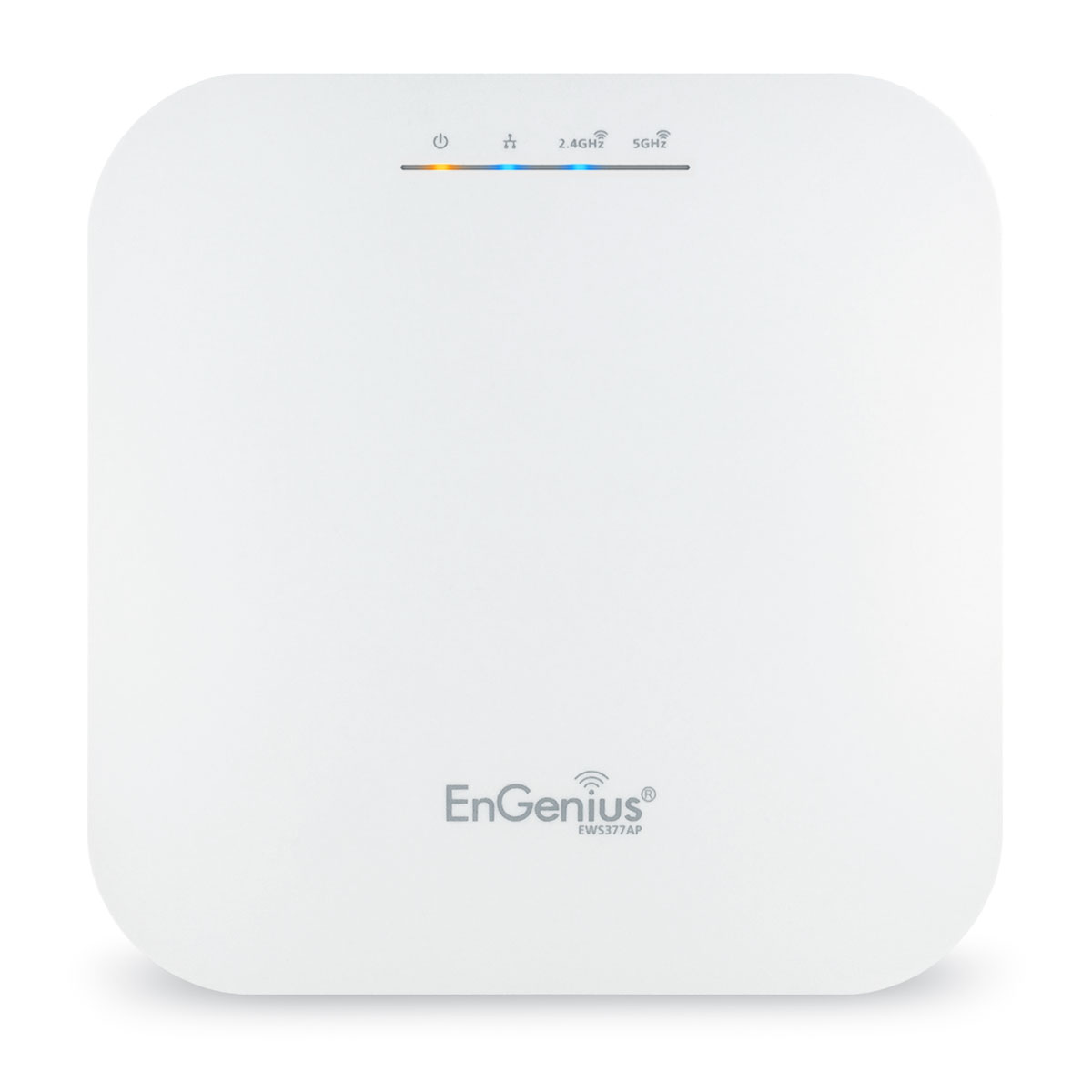

EnGenius EWS377AP Wi-Fi 6 4x4 Managed Indoor Wireless Access Point features 802.11ax technology, which deepens and extends the capabilities of Wi-Fi and harnesses EnGenius enterprise-level management and AP features for use in high-capacity environments. The slim, low-profile AP is loaded with new hardware components, such as a Qualcomm chipset, to run more efficiently and consume less power for maximum theoretical speeds of 1,148 Mbps (2.4 GHz frequency) and 2,400 Mbps (5 GHz frequency). To give your network elevated security, WPA3 and WPA2-EAS make connecting client and IoT devices more secure and easier.

• Dual concurrent 802.11ax architecture & backward-compatible with 11ac/a/b/g/n client devices
• WPA3 & WPA2-EAS authentication support
• Supports up to 2,400 Mbps in 5-GHz frequency band & 1,148 Mbps in 2.4-GHz frequency band
• 4x4 design with 8 three (3) dBi integrated antennas
• 2.5 Gigabit Ethernet port that supports PoE+ (802.11at) for flexible power options
• Local and remote management over EWS management switches & ezMaster without fees

Technical Specifications

Standards
IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz

Backward compatible with 802.11b/g/n/ac

Processor
Qualcomm® Quad-Core ARM Cortex A53s @ 2.0GHz CPU

Antenna
4 x 2.4 GHz: 3 dBi
4 x 5 GHz: 3 dBi
Integrated Omni-Directional Antenna

Physical Interface
1 x 10/100/1000/2500 BASE-T, RJ-45 Gigabit Ethernet Port
1x DC Jack
1 x Reset Button

LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
1 x BLE
1 x SCAN
Power Source
Power-over-Ethernet: 802.3at Input
12VDC /2A Power Adapter

Maximum Power Consumption
19.5W

Wireless & Radio Specifications

Operating Frequency
Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes
AP, Mesh

Frequency Radio
2.4 GHz: 2400 MHz ~ 2835 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power
Up to 23 dBm on 2.4 GHz
Up to 23 dBm on 5 GHz

Tx Beamforming (TxBF)

Radio Chains/Spatial Stream
4x4

SU-MIMO
Four(4) spatial stream SU-MIMO for 2.4GHz and four(4) spatial stream SU-MIMO for 5GHz up to 3,548 Mbps wireless data rate to a single wireless client device under the both 2.4gHz and 5GHz radio.

MU-MIMO
Four(4) spatial streams Multiple (MU)-MIMO for up to 2400 Mbps wireless data rate to transmit to two(2) two streams MU-MIMO 11AX capable wireless client devices under 5GHz simultaneously.

Four(4) Multiple (MU)-MIMO for up to 1148 Mbps wireless data rate to transmit to two (2) two streams MU-MIMO 11AX capable wireless client devices under 2.4GHz simultaneously.

Supported Data Rates (Mbps):
802.11ax:
2.4 GHz: 9 to 1148 (MCS0 to MCS11, NSS = 1 to 4)
5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 600 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4)

Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)

Channelization
802.11ax supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU

Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK

Management

Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios.

VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-Band VLAN Pass-Through
Management VLAN

Spanning Tree
Supports 802.1d Spanning Tree Protocol

QoS (Quality of Service)
Complaint With IEEE 802.11e Standard
WMM

SNMP
v1, v2c, v3

MIB
I/II, Private MIB
