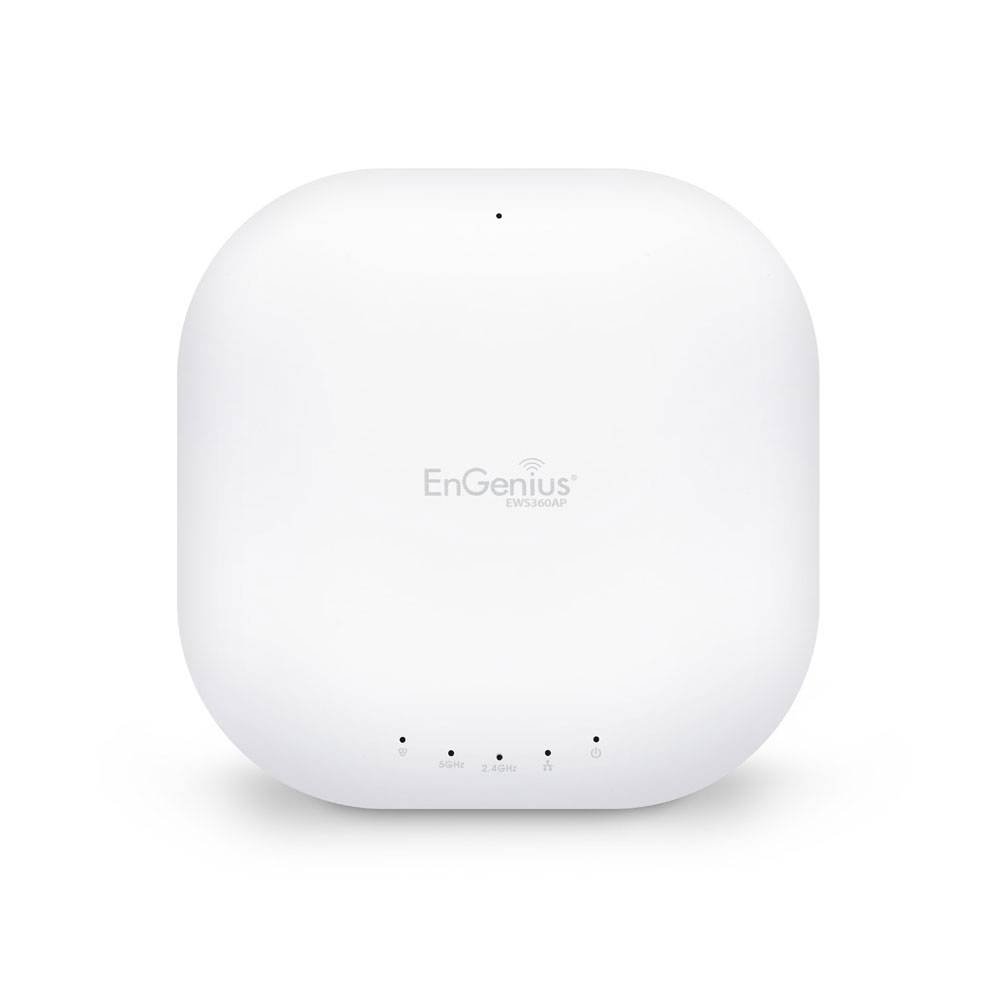

The EWS360AP Wi-Fi Access Point has increased speed and user capacity and is ideal for large offices, schools, and hospitality guest Wi-Fi access leveraging increased throughput and performance to support the latest 11ac mobile devices. Operates as a stand-alone AP or part of a scalable EnSky network management solution.
Standards
IEEE 802.11b/g/n on 2.4 GHz
IEEE 802.11a/n/ac on 5 GHz
IEEE 802.3at
IEEE 802.1r
IEEE 802.1k
IEEE 802.11x
Memory Capacity
Memory: 128 MB
Flash Memory 16 MB
Antenna
Internal Omni-Directional Antennas
5 dBi on 2.4 GHz & 5 GHz
Physical Interface
1 x 10/100/1000 Gigabit Ethernet Port
1 x Reset Button
1 x Power Connector
Physical Security
Kensington Security Slot
LED Indicators
1 x Power
WLAN (Wireless Connection)
2.4 GHz
5 GHz
1 x LAN
Power Source
External Power Adapter
DC IN, 12V/2A
IEEE 802.3at Compliant Source
Mounting
Ceiling Mount
Wall Mount
Operating Frequency
Dual-Radio Concurrent 2.4GHz & 5GHz
Operation Modes
Access Point
Mesh Access Point
Frequency Radio
2.4GHz:
2400MHz ~ 2835MHz
5GHz:
5180MHz ~ 5240MHz, 5260 ~ 5320MHz, 5500MHz ~ 5700MHz, 5745MHz ~ 5825MHz
Transmit Power
Up to 28 dBi on 2.4 & 5 GHz
Max transmit power is limited by regulatory power
Radio Chains/Spatial Streams
3x3:3
Supported Data Rates (Mbps)
2.4 GHz: Max 450
5 GHz: Max 1300
802.11b: 1, 2, 5.5, 11
802.11g: 6, 9, 12, 18, 24, 36, 48, 54
802.11n: 6.5 to 450 (MCS0 to MCS23)
802.11ac: 6.5 to 1300 (MCS0 to MCS9, NSS=1 ~3)
Supported Radio Technology
802.11b: Direct-Sequence Spread-Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal frequency-division Multiplexing (OFDM)
Channelization
802.11ac with 20/40/80 MHz channel width
802.11n with 20/40 MHz channel width
802.11a/b/g with 20 MHz channel width
Supported Modulation
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Multiple BSSID
Supports up to 8 SSIDs per radio
VLAN Tagging
Supports 802.1q SSID-to-VLAN tagging
VLAN Pass through
QoS
Compliant with IEEE 802.11e Standard
WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Deployment Options
Standalone (Individually Managed)
Managed Mode (with EnSky Series Switch/ezMaster)
Wireless Management Features (with ezMaster & EnSky Switch)
AP Auto Discovery and Provisioning
AP Auto IP Assignment
AP Group Management
Remote AP Rebooting
AP Device Name Editing
AP Radio Settings
Band Steering
Traffic Shaping
Fast Roaming (802.11k & 802.11r)
Pre-Authentication (802.11i, 802.11x)
PMK Caching (802.11i)
RSSI Threshold
AP Client Limiting
Client Fingerprinting
AP VLAN Management
VLANs for AP - Multiple SSIDs
Secured Guest Network
Captive Portal
Access Point Status Monitoring
Rogue AP Detection
Wireless Client Monitoring
Background Scanning
Auto Transmit Power
Auto Channel
Email Alert
Wireless Traffic & Usage Statistics
Real-time Throughput Monitoring
Visual Topology View
Floor Plan View
Map View
Wireless Coverage Display
SSL Certificate
Remote MAC Address Database (RADIUS)
Unified Configuration Import/Export
Bulk Firmware Upgrade Capability
One-Click Update
Intelligent Diagnostics
Kick/Ban Clients
Wi-Fi Scheduler
Traffic Shaping
Configuration
Web Interface (HTTP)
CLI (Telnet)
Control Features
Managed Mode (by EnSky Switch/ezMaster)
Auto Reboot
One-Click Firmware Upgrade
Firmware Upgrade: Web interface or CLI (FTP/HTTP)
Security
WPA/WPA2 Enterprise
Hide SSID in beacons
MAC Address Filtering
Https Support
SSH Support
Client Isolation
L2 Isolation
Temperature Range
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 140°F (-20°C to 60 °C)
Humidity (non-condensing)
Operating: (90% or less
Storage: 90% or less
EWS360AP Device
Weight: 0.80 Ibs.
Width: 6.36” (161.54 mm)
Length: 6.36” (161.54 mm)
Height: 1.64” (41.66 mm)
Package Contents
- EWS360AP Dual-Band 802.11ac Indoor Access Point
- 12V/2A Power Adapter
- T-Rail Mounting Kit
- Ceiling and Wall Mount Screw Kit
- Mounting Bracket
- RJ-45 Ethernet Cable
- Quick Installation Guide
