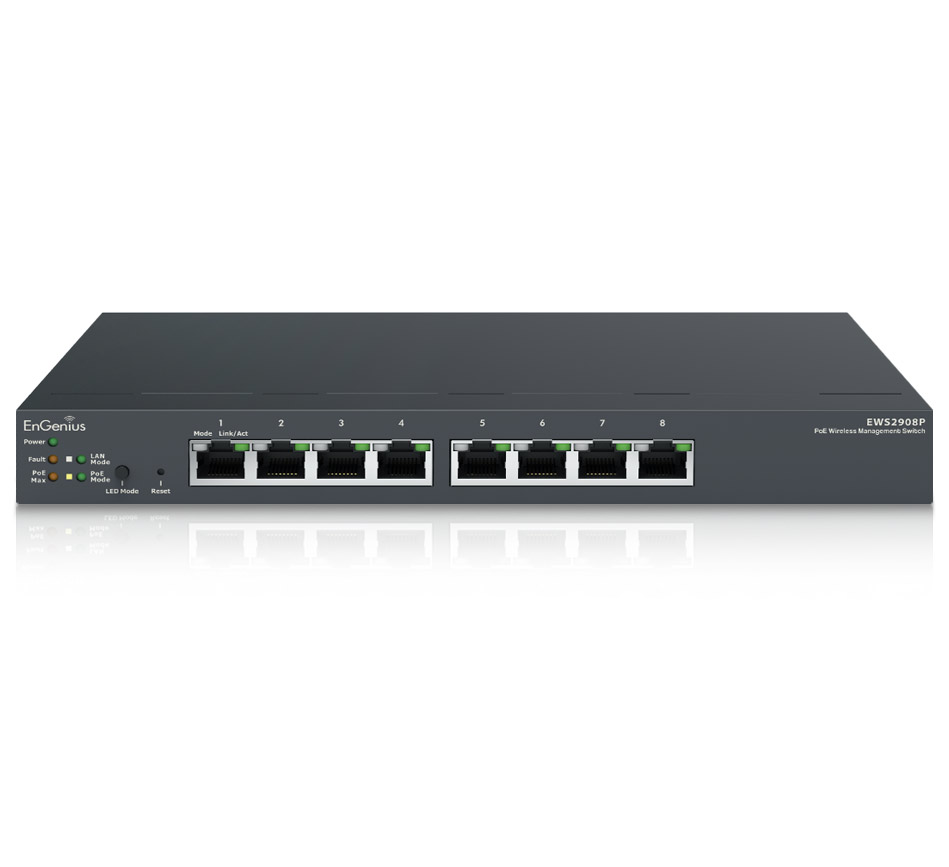

The EWS2908P Managed 55W 8-Port PoE Switch features simplified network configuration, monitoring and management options along with an easy-to-use Web interface. Locally manage up to 50 EnGenius access points and centrally manage wired and wireless networks via ezMaster. Power compatible PoE devices such as IP cameras, VoIP phones, and APs. The EWS2908P is 802.3af compliant which will support EnGenius Access Points EWS330AP & EWS355AP and can support any other 802.3af devices. For APs that require PoE+ or 802.3at-compliant power, please use the EWS5912FP Switch.

• (8) 10/100/1000 Mbps Gigabit Ethernet PoE Ports
• Desktop Model Supports Full-Featured Layer 2 Switching
• 802.3af Available On All Ports with a Total PoE Budget of 55W
• Manage up-to 50 EnGenius Access Points

Technical Specifications

Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 10000Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports
8 10/100/1000 Mbps Ports

Performance
Switching Capacity: 20 Gbps
Forwarding Mode: Store-and-Forward
SDRAM: 256 MB
Flash Memory: 32 MB
Packet Buffer Memory: 512 KB
Address Database Size: 8,000 MAC Addresses

PoE Capability
PoE Standard: Ports 1~8 Support IEEE 802.3af
PoE Capable Ports: All Gigabit Ethernet Ports/Up to 15 W

PoE Budget
55 W

Power Source
AC Input: 100 ~ 240VAC, 50-60Hz, 1.2A
DC Output: 54V/1.67A

Physical Interface

LED Indicators
Reset Button
Desktop/Wall Mount

LED Indicators
Device:
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED

Ports
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)

Software Features

Layer 2 Features

802.3ad Link Aggregation
- Maximum of 8 Groups/8 Ports per Group

Port Mirroring
- One-to-One
- Many-to-One

Spanning Tree Protocol
- 802.1D Spanning Tree Protocol (STP)
- 802.1w Rapid Spanning Tree Protocol (RSTP)
- 802.1s Multiple Spanning Tree Protocol (MSTP)

MAC Address Table
- 8K Entries

Static MAC Address
- 256 Entries

802.1ab Link Layer Discovery Protocol

IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Supports 4094 IGMP Groups
- IGMP per VLAN
- IGMP Snooping Query
- IGMP Snooping Fast Leave

MLD Snooping
- MDL Snooping v1/v2
- Supports 4,094 MLD Groups
- IGMP per VLAN

Jumbo Frame
- Up to 9,216 bytes

802.3x Flow Control

802.3az Energy Efficient Ethernet

VLAN
802.1Q Support

VLAN Group
- Max 4,094 Static VLAN Groups

Voice VLAN

QoS
802.1p Quality of Service
- 8 Queues per Port

Queue Handling
- Strict
- Weighted Round Robin (WRR)

QoS Based on:
- 802.1p Priority
- DSCP

Bandwidth Control
- Port-Based (Ingress/Egress, 64 Kbps~1000 Mbps)

Broadcast/Unknown Multicast/Unknown Unicast Storm Control
Access Control List (ACL)
Layer 2/3
- Supports Maximum 50 Entries (ACL)
- Supports Maximum 256 Entries (ACE)

ACL Based on:
- MAC Address
- VLAN ID
- 802.1p Priority
- Ethertype
- IP Address
- Protocol Type
- DSCP
