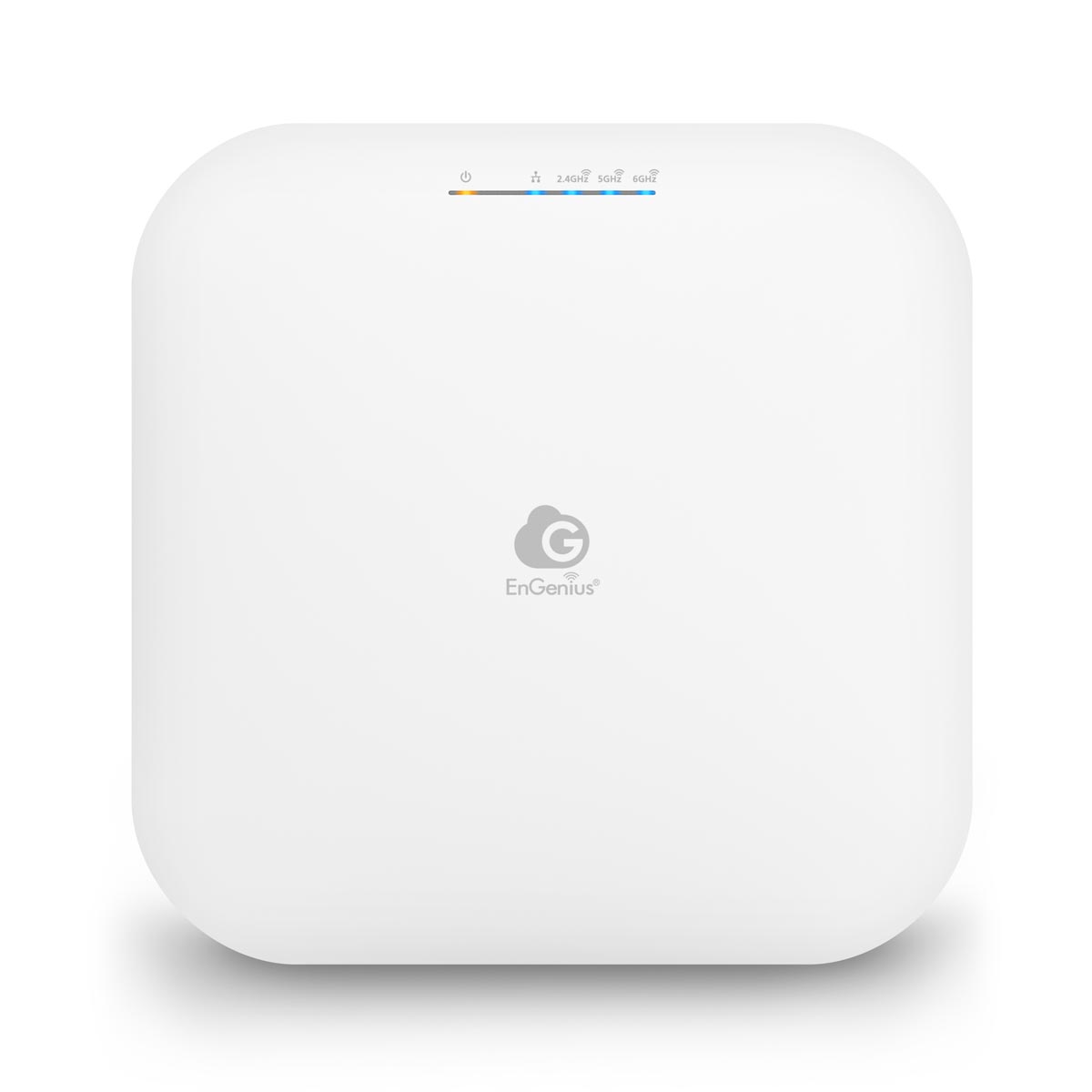

The EnGenius Cloud Managed ECW336 6 GHz tri-band 4x4 WiFi 6E Access Point supports up to 8.4 Gbps using 2.4 GHz, 5 GHz, and the newly-released 6 GHz band. The seven super-wide 160 MHz channels greatly increase network capacity and reduce bandwidth congestion. The wide-open 6GHz spectrum is occupied only by efficient Wi-Fi 6 client devices, removing frustrations currently caused by overcrowding of legacy devices on multiple Wi-Fi networks. There are twice as many channels on the newly opened 6GHz band that do not overlap with each other greatly reducing network bottlenecks and enabling Gigabit WiFi. The ECW336 also supports a 5 GbE PoE+ port for easy AP placement, WPA3 Enterprise security and “enhanced open” for stronger encryption and authentication.

• 4x4:4 MU-MIMO Wi-Fi 6 (802.11ax) compatible for top speeds
• 8.4 Gbps tri-radio aggregate frame rate for gigabit Wi-Fi
• 5 GbE PoE+ port to maximize the connection speed and AP placement
• Tri-concurrent 802.11ax architecture backward compatible with all ac/a/b/g/n client devices
• The 1200 MHz band that supports AR/VR, ultra-high HD, and other applications
• The 6 GHz interference-free band allows ultra-fast Gigabit WiFi speeds
• Integrated enterprise security and guest access
• Powerful built-in Qualcomm Quad-core CPU for superior performance and advanced 1024-QAM for faster packet transmission
• OFDMA and MU-MIMO for fast, efficient transmissions between the AP and client devices and BSS coloring for increased spatial reuse
• Access point diagnostic tools for real time channel utilizationThe EnGenius Cloud Managed ECW336 6 GHz tri-band 4x4 WiFi 6E Access Point supports up to 8.4 Gbps using 2.4 GHz, 5 GHz, and the newly-released 6 GHz band. The seven super-wide 160 MHz channels greatly increase network capacity and reduce bandwidth congestion. The wide-open 6GHz spectrum is occupied only by efficient Wi-Fi 6 client devices, removing frustrations currently caused by overcrowding of legacy devices on multiple Wi-Fi networks. There are twice as many channels on the newly opened 6GHz band that do not overlap with each other greatly reducing network bottlenecks and enabling Gigabit WiFi. The ECW336 also supports a 5 GbE PoE+ port for easy AP placement, WPA3 Enterprise security and “enhanced open” for stronger encryption and authentication.
• 4x4:4 MU-MIMO Wi-Fi 6 (802.11ax) compatible for top speeds
• 8.4 Gbps tri-radio aggregate frame rate for gigabit Wi-Fi
• 5 GbE PoE+ port to maximize the connection speed and AP placement
• Tri-concurrent 802.11ax architecture backward compatible with all ac/a/b/g/n client devices
• The 1200 MHz band that supports AR/VR, ultra-high HD, and other applications
• The 6 GHz interference-free band allows ultra-fast Gigabit WiFi speeds
• Integrated enterprise security and guest access
• Powerful built-in Qualcomm Quad-core CPU for superior performance and advanced 1024-QAM for faster packet transmission
• OFDMA and MU-MIMO for fast, efficient transmissions between the AP and client devices and BSS coloring for increased spatial reuse
• Access point diagnostic tools for real time channel utilization

Specifications

Standards
IEEE 802.11ax on 2.4 GHz
IEEE 802.11ax on 5 GHz
IEEE 802.11ax on 6 GHz
(Backward compatible with 802.11b/g/n/ac)

Processor
Qualcomm® Networking Pro 1210 Platform

Antenna
4 x 2.4 GHz: 5 dBi
4 x 5 GHz: 6 dBi
4 x 6 GHz: 5 dBi

Physical Interface
1 x 10/100/1000/2500/5000 BASE-T, RJ-45 Ethernet Port
1x DC Jack
1 x Reset Button

LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
1 x 6 GHz

Power Source
Power-over-Ethernet: 802.3at Input
12VDC /2A Power Adapter (Not Included)

Maximum Power Consumption
22.5W

Wireless & Radio Specifications

Operating Frequency
Dual-Radio Concurrent 2.4 GHz, 5 GHz, & 6 GHz

Operation Modes
AP, Mesh

Frequency Radio
2.4 GHz: 2400 MHz ~ 2835 GHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
6 GHz: 5.925GHz~6.425GHz, 6.425GHz~6.525GHz, 6.525GHz~6.875GHz, .6875GHz~7.125GHz

Transmit Power
Up to 23 dBm on 2.4 GHz
Up to 23 dBm on 5 GHz
Up to 23 dBm on 6 GHz
(Maximum power is limited by regulatory domain)

Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance.

Radio Chains/Spatial Stream
4x4:4

SU-MIMO
Four (4) spatial stream SU-MIMO for 2.4GHz and four spatial stream SU-MIMO for 5GHz up to 3,548 Mbps wireless data rate to a single wireless client device under 2.4 GHz, 5 GHz, and 6 GHz radios.

MU-MIMO
Four (4) spatial streams multi-user (MU)-MIMO for up to 4800 Mbps wireless data rate to transmit to two (2) two streams MU-MIMO 11ax capable wireless client devices under 6GHz simultaneously.
Four (4) spatial streams multi-user (MU)-MIMO for up to 2400 Mbps wireless data rate to transmit to two (2) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
Four (4) spatial streams multi-user (MU)-MIMO for up to 1148 Mbps wireless data rate to transmit to two (2) two streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.

Supported Data Rates (Mbps):
802.11ax:
6 GHz:
5 GHz: 18 to 2400 (MCS0 to MSC11, NSS = 1 to 4)
2.4 GHz: 9 to 1148 (MCS0 to MCS11, NSS = 1 to 4)
802.11ac: 6.5 to 1733 Mbps (MCS0 to MCS9, NSS = 1 to 4)
802.11n: 6.5 to 600 Mbps (MCS0 to MCS15)
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11b: 1, 2, 5.5, 11

Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)

Channelization
802.11ax supports high efficiency (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Dynamic Frequency Selection (DFS) Certified

Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
