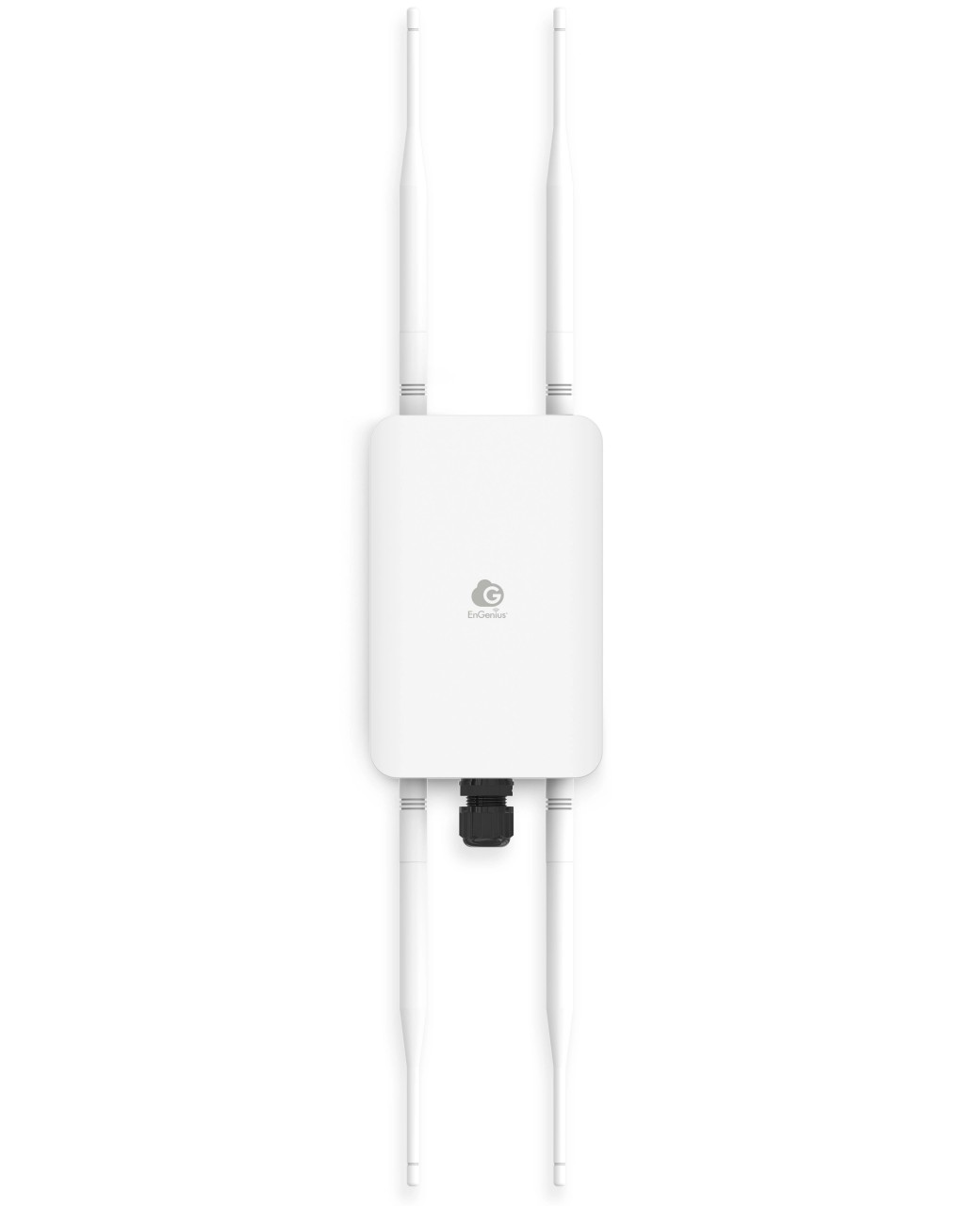

• EnGenius Cloud Managed ECW160 11ac Wave 2, 2x2, IP67, MU-MIMO Dual-Band Outdoor Mesh WiFi Wireless Access Point reaching speeds to 867Mbps on 5GHz and 400Mbps on 2.4GHz band. Designed to perform in harsh environments, this AP leverages advanced Wi-Fi and Beamforming technology, maximizing performance and reliability while greatly increasing network user capacities.
• Dual-radio 2x2 802.11ac/a/b/g/n with MU-MIMO & Beamforming technology
• Supports up-to 867 Mbps in 5-GHz band & 400 Mbps in 2.4-GHz band
• IP67-Rated Weatherproof & Dustproof Housing Withstands Harsh Environments
• GigE PoE-Compatible Port for Easy Placement Where Power Outlets are Scarce
• Four (4) Detachable 5dbi High-Gain, 360° SMA-Type Antennas

Technical Specifications

Standards
IEEE 802.11b/g/n on 2.4GHz
IEEE802.11a/n/ac on 5GHz

Processor
Qualcomm® 717 MHz Quad-Core CPU
ARM Cortex A7

Antenna
Four (4) External 5 dBi Dual-Concurrent Omni-Directional Antenna
SMA-Type

Physical Interface
1 x 10/100/1000 BASE-T, RJ-45 Ethernet Port

LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz

Power Source
Power-over-Ethernet: 802.3af/at or Proprietary 54V
IEEE 802.11e Compliant Source
Active Ethernet (PoE)

Maximum Power Consumption
12.6W

Surge Protection
2KV

ESD Protection
Contact: 4KV
Air: 8 KV

Wireless & Radio Specifications

Operating Frequency
Dual-Radio Concurrent 2.4GHz & 5 GHz

Operation Modes
AP, Mesh

Frequency Radio
2.4GHz: 2400 MHz ~ 2482 MHz
5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz

Transmit Power
2.4 GHz: 23 dBm
5 GHz: 23 dBm

Tx Beamforming (TxBF)

Radio Chains/Spatial Stream
2x2:2

SU-MIMO
Two (2) spatial stream Single User (SU) MIMO for up to 400 Mbps wireless data rate with VHT40 bandwidth to a 2x2 wireless device under the 2.4GHz radio.

Two (2) spatial stream Single User (SU) MIMO for up to 867 Mbps wireless data rate with VHT80 to a 2x2 wireless device under the 5GHz radio.

MU-MIMO
Two (2) Spatial Stream MU-MIMO up to 1267 Mbps to two (2) MU-MIMO capable wireless devices simultaneously

Supported Data Rates (Mbps):
2.4 GHz: Max 400
5 GHz: Max 867
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 400 Mbps (MCS0 to MCS15) (Additional 25% bandwidth when enabling 256-QAM under HT40)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies
802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11n/ac: 2x2 MIMO with 2 Streams

Channelization
802.11ac supports very high throughput (VHT)—VHT 20/40/80 MHz
802.11n supports high throughput (HT)—HT 20/40 MHz
802.11n supports very high throughput (VHT) under the 2.4 GHz radio—VHT (256-QAM)
802.11n/ac packet aggregation: AMPDU, ASPDU

Supported Modulation
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
