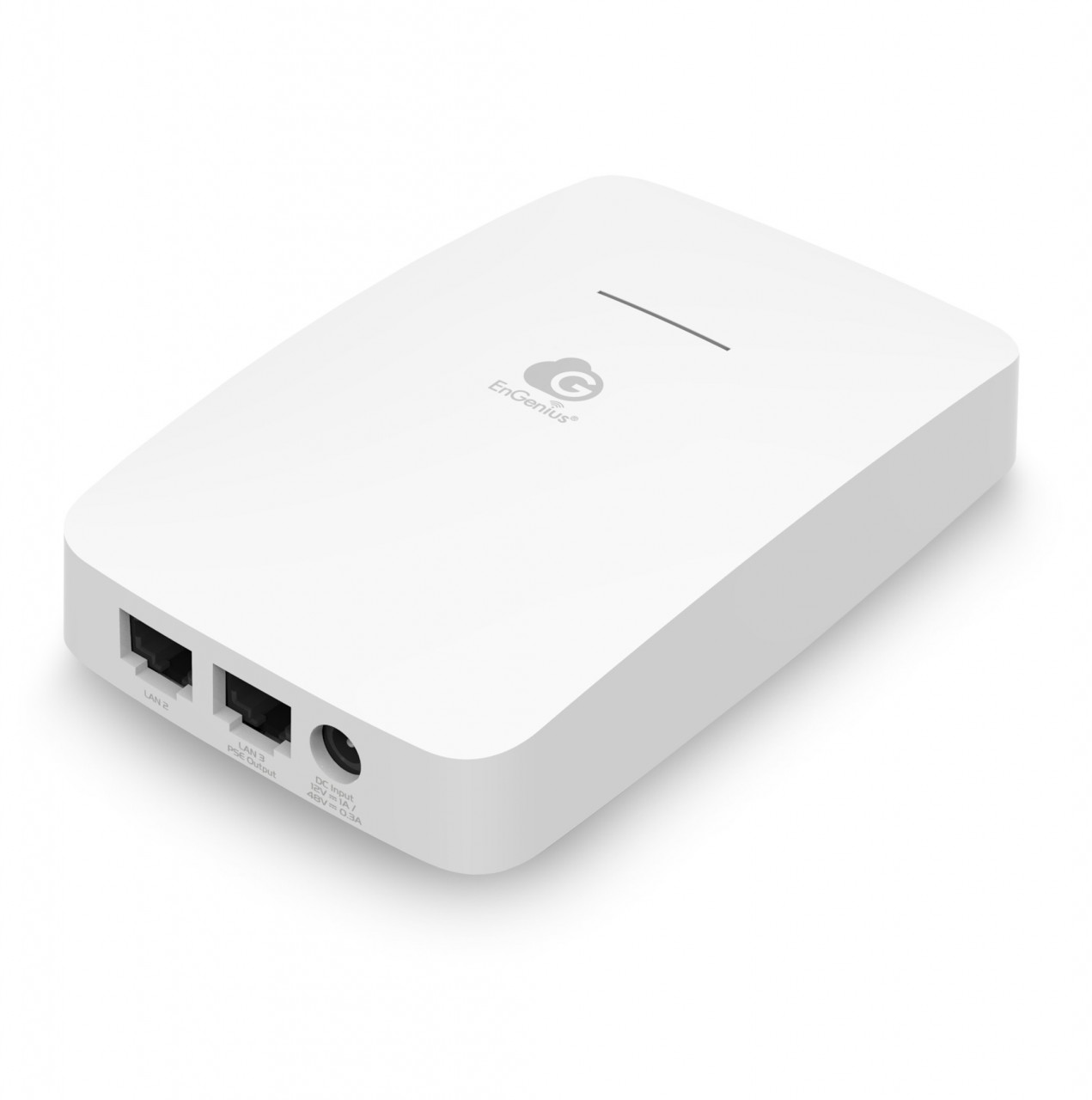

EnGenius Cloud Managed ECW115 11ac Wave 2 2x2:2 Wall Plate Access Point with built-in 2-port Gigabit switch offers in-demand, high-speed in-room wired and wireless connectivity that is flexible and reliable. Deploy in hotel guest rooms, dorms, classrooms, and multi-tenant dwellings.

• Dual-radio 2x2 802.11ac/a/b/g/n with MU-MIMO & Beamforming technology
• Supports up-to 867 Mbps in 5-GHz band & 400 Mbps in 2.4-GHz band
• Sleek, Low Profile Design for In-Room Wi-Fi & Wired Connectivity
• On-Board 2-Port Switch Offers Port-Based 802.1Q VLAN Support
• LAN1 & LAN2 support PoE input for flexible installation up-to 328 feet
• Connect & Power VoIP Phones or other PoE devices with PoE Support
• Cloud Manage unlimited number of AP’s from Anywhere with the EnGenius Cloud App

Technical Specifications

Standards
IEEE 802.11b/g/n on 2.4 GHz
IEEE 802.11a/n/ac Wave 2 on 5 GHz

Processor
Qualcomm® 717 MHz Quad-Core CPU
ARM Cortex A7

Antenna
2 x 2.4 GHz: 4 dBi
2 x 5 GHz: 5 dBi
Integrated Omni-Directional Antenna

Physical Interface
1 x 10/100/1000 Mbps Ethernet Uplink Port (back plate)
2 x 10/100/1000 Mbps Ethernet Switched Ports (client ports)
- Port 1 (PSE) 13W PoE (requires 802.3at power source)
1 x Reset Button
1 x DC Jack

LED Indicators
1 x Multi- color LED for following behavior
- Power up
- Cloud connecting
- Disconnected

Power Source
Power-over-Ethernet: 802.3af/at Input
- 802.3af Output w/ 802.3at Input
IEEE 802.11e Compliant Source
DC Jack: 12V/ 48V

Maximum Power Consumption
12W

Wireless & Radio Specifications

Dual-Radio Concurrent 2.4 GHz & 5 GHz

Operation Modes
AP, AP Mesh, Mesh

Frequency Radio
2.4 GHz: 2400 MHz ~ 2482 MHz
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz

Transmit Power
Up to 17 dBm on 2.4 GHz
Up to 17 dBm on 5 GHz

Tx Beamforming (TxBF)

Radio Chains/Spatial Stream
2x2:2

SU-MIMO
Two (2) spatial stream Single User (SU) MIMO for up to 400 Mbps wireless data rate with VHT40 bandwidth to a 2x2 wireless device under the 2.4GHz radio.
Two (2) spatial stream Single User (SU) MIMO for up to 867 Mbps wireless data rate with VHT80 to a 2x2 wireless device under the 5GHz radio.

MU-MIMO
Two (2) Spatial Stream MU-MIMO up to 867 Mbps to two (2) 1x1 wireless devices simultaneously

Supported Data Rates (Mbps):
2.4 GHz: Max 400
5 GHz: Max 867
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 400 Mbps (MCS0 to MCS15) (Additional 25% bandwidth when enabling 256-QAM under HT40)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)

Supported Radio Technologies
802.11b: Direct-Sequence Spread Spectrum (DSSS)
802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM)
802.11n/ac: 2x2 MIMO with 2 Streams

Channelization
802.11ac Supports Very High Throughput (VHT)—VHT 20/40/80 MHz
802.11n Supports High Throughput (HT)—HT 20/40 MHz
802.11n Supports High Throughput (HT) Under the 2.4 GHz Radio—HT 40 MHz (256-QAM)
802.11n/ac Packet Aggregation: A-MPDU, A-SPDU

Supported Modulation
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
