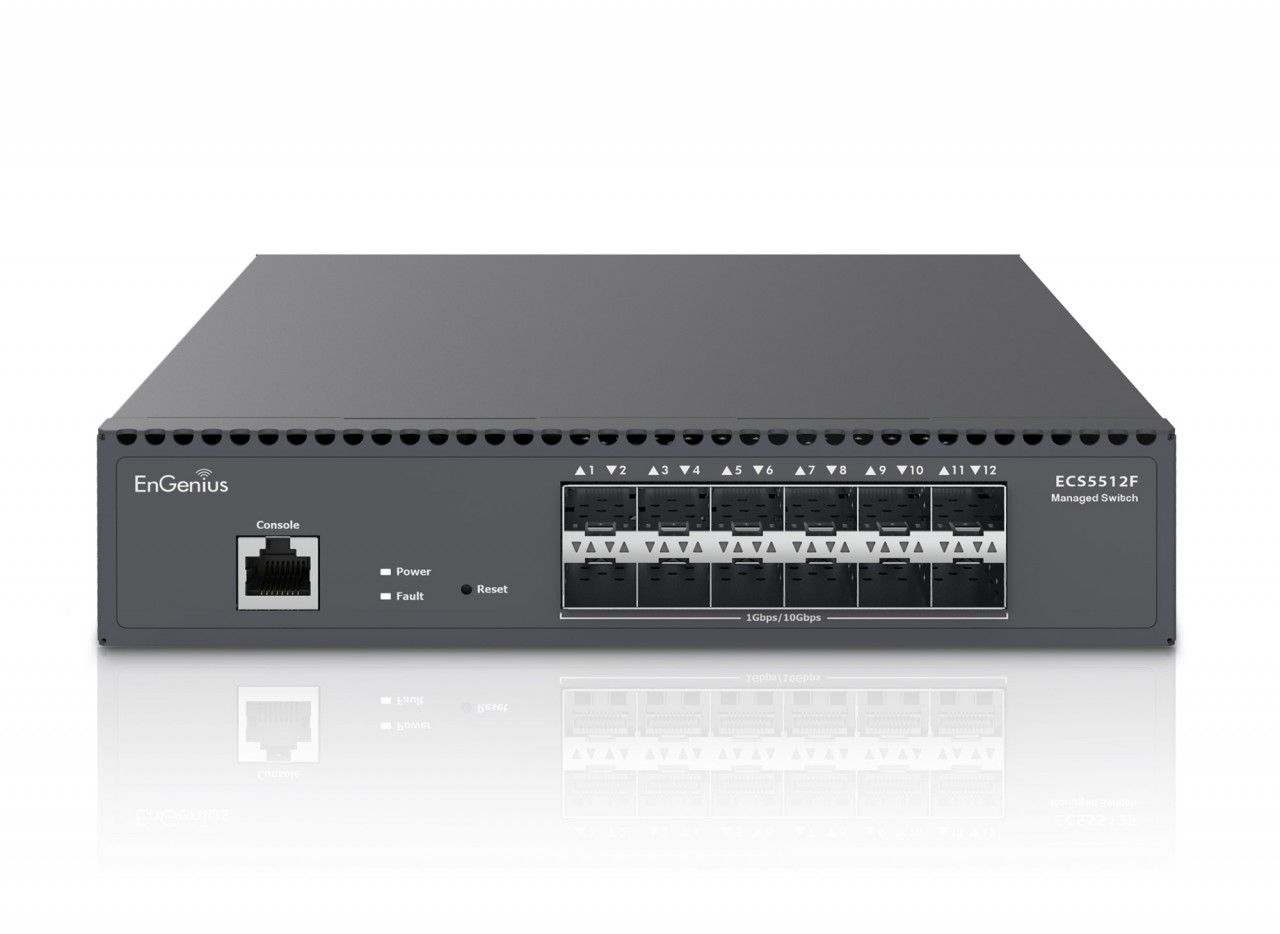

The EnGenius cloud-managed ECS5512F 12-port 10 Gigabit SFP+ half-rack aggregate fiber switch, expandable to two per rack, boosts traffic flow and network performance. Administrators can easily scale from 12 to 24 SFP+ ports on a single rack as network demands increase in large business, multi-dwelling unit, hospitality, and campus environments.

• (12) 10 Gigabit SPF+ Ports
• Full-Featured Layer 2+ Ethernet Switch
• 240 Gbps Switching Capacity
• Half Rack 1U (9.5”) Mount Expandable to Two Switches 1U (19") per Rack
• Real-Time System Metrics, Deep-Dive Analytics and Remote Configurations
• Quick-Scan Device Register, Remote Monitoring and Troubleshooting
• Advanced View Displays Network Topology with Devices and Relationships
• Hybrid Switch Supports Multiple Management Options
• Security - Access Control List/Port Security; 802.1X & RADIUS Authentication
• IGMP & MLD snooping provides advanced multicast filtering & network efficiency
• 802.3ad Link Aggregation (LACP) Supports Traffic Load Balancing
• Spanning Tree (STP), Rapid Spanning Tree (RSTP) & Multiple Spanning Tree (MSTP)
• Voice VLAN for fast, reliable deployment of VoIP services

Technical Specifications

Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports
12 SFP+ Ports

Switching Capacity
240Gbps

SDRAM
512MB

Flash Memory
128MB

Power Source
100 ~ 240VAC, 50-60Hz

Physical Interface

LED Indicators
Power LED
Fault LED

Ports
Link/Activity/Speed (per SFP slot)

Software Features (L3 Features)

Multiple IP Interface
20 IPv6 address

ARP Table
Max. 192 ARP entries

Static ARP
Static 192 ARP entries

IPv4 Static Route
Max. 63 entries

IPv6 Static Route
Max. 21 entries

Software Features (L2 Features)

Network Management
EnGenius Cloud
Local Web GUI

MAC Address Table
16K

Jumbo Frame
9K

Multicast Group
Max 256 groups

MLD Snooping
MLD Snooping: v1

QoS-Number of Priority Queues Supported
Queue 8

Trust Mode
Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism
Strict / WRR/ Strict + WRR

Bandwidth Control
Port-based bandwidth control (Ingress/Egress)

Port Security
Max. 256 Entries
