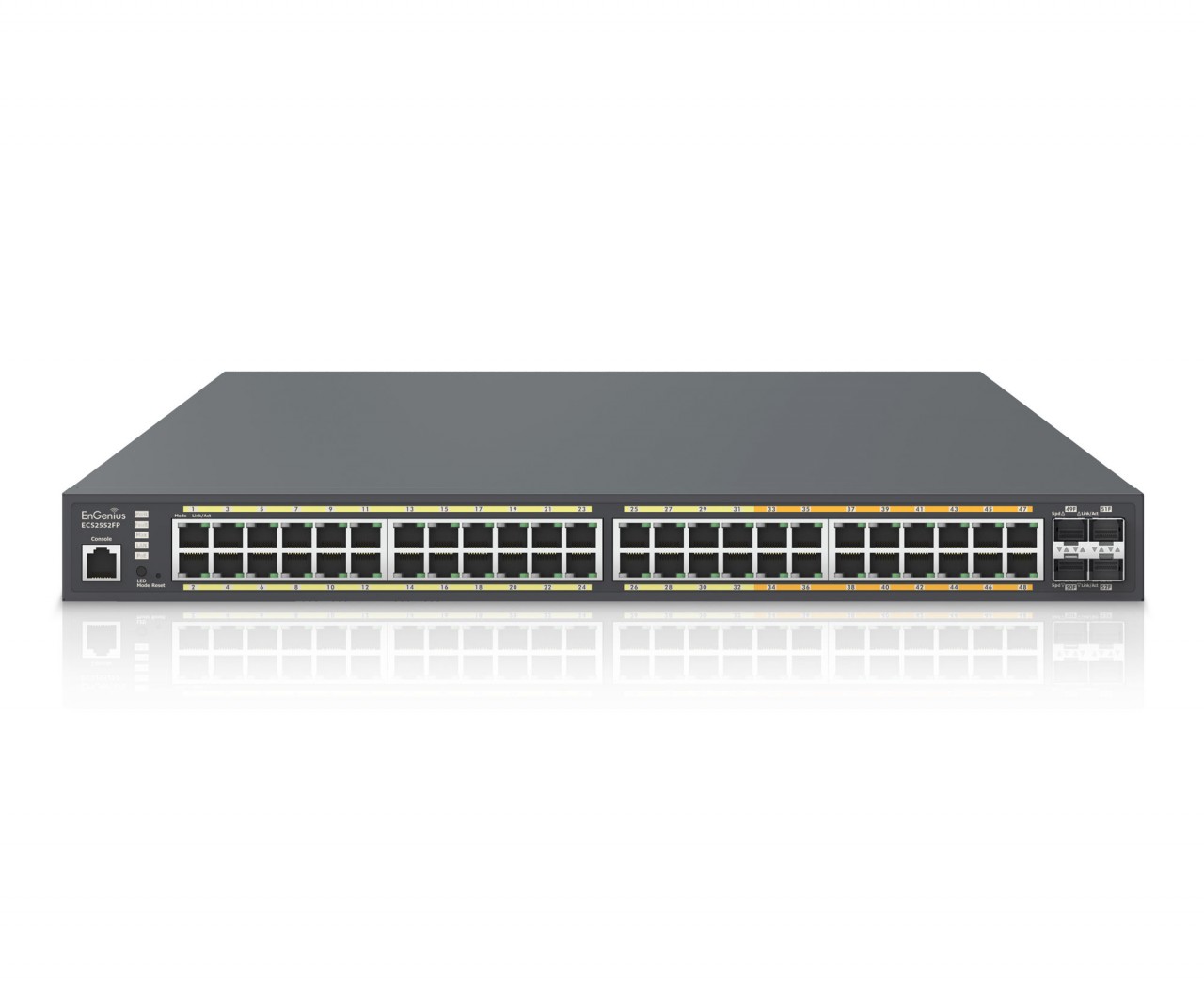

The EnGenius ECS2552FP cloud-managed 48-port PoE+ multi-gigabit network switch with 740-Watt budget, simple network configuration, monitoring, and management powers IP cameras, VoIP phones, and access points. The ECS2552FP offers features like extended PoE mode, PD lifeguard, and continuous PoE power, to extend the reach and to maximize uptime for surveillance cameras.

• 48 10/100/1000/2500 Base-T GbE Ports
• 32 Gigabit and 16 2.5-Gigabit PoE Ethernet Ports
• Full-Featured Layer 2+ Ethernet Network Switch
• 802.3 at/af PoE+ Ready on All Ports with 740W PoE budget
• 224 Gbps Switching capacity
• 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
• Real-Time System Metrics, Deep-Dive Analytics and Remote Configurations
• Quick-Scan Device Register, Remote Monitoring and Troubleshooting
• PoE Extended Mode - Extend PoE Ethernet cable deploying range up to 250 meters
• PD Lifeguard - Real-time detecting and auto-reboot PoE power for failed camera
• Continuous PoE Power – Steady supply of PoE power for camera during switch upgrades
• Advanced View Displays Network Topology with Devices and Relationships
• Hybrid Switch Supports Multiple Management Options

Technical Specifications

Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2.5G Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports
32 10/100/1000 Mbps Ports
16 100/1000/2500 Mbps Ports
4 SFP+ Ports

Switching Capacity
224Gbps

SDRAM
512MB

Flash Memory
128MB

PoE+ Capable Ports
1-48 (802.3af/at)

Total PoE Budget
740W

Power Source
100 ~ 240VAC, 50-60Hz

Physical Interface

LED Indicators
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED

Ports
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)

Software Features (L3 Features)

Multiple IP Interface
20 IPv6 address

ARP Table
Max. 192 ARP entries

Static ARP
Static 192 ARP entries

IPv4 Static Route
Max. 63 entries

IPv6 Static Route
Max. 21 entries

Software Features (L2 Features)

Network Management
EnGenius Cloud
ezMaster/SkyKey
Local Web GUI

MAC Address Table
32K

Jumbo Frame
10K

Multicast Group
Max 256 groups

MLD Snooping
MLD Snooping: v1

QoS-Number of Priority Queues Supported
Queue 8

Trust Mode
Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism
Strict / WRR/ Strict + WRR

Bandwidth Control
Port-based bandwidth control (Ingress/Egress)

Port Security
Max. 256 Entries
