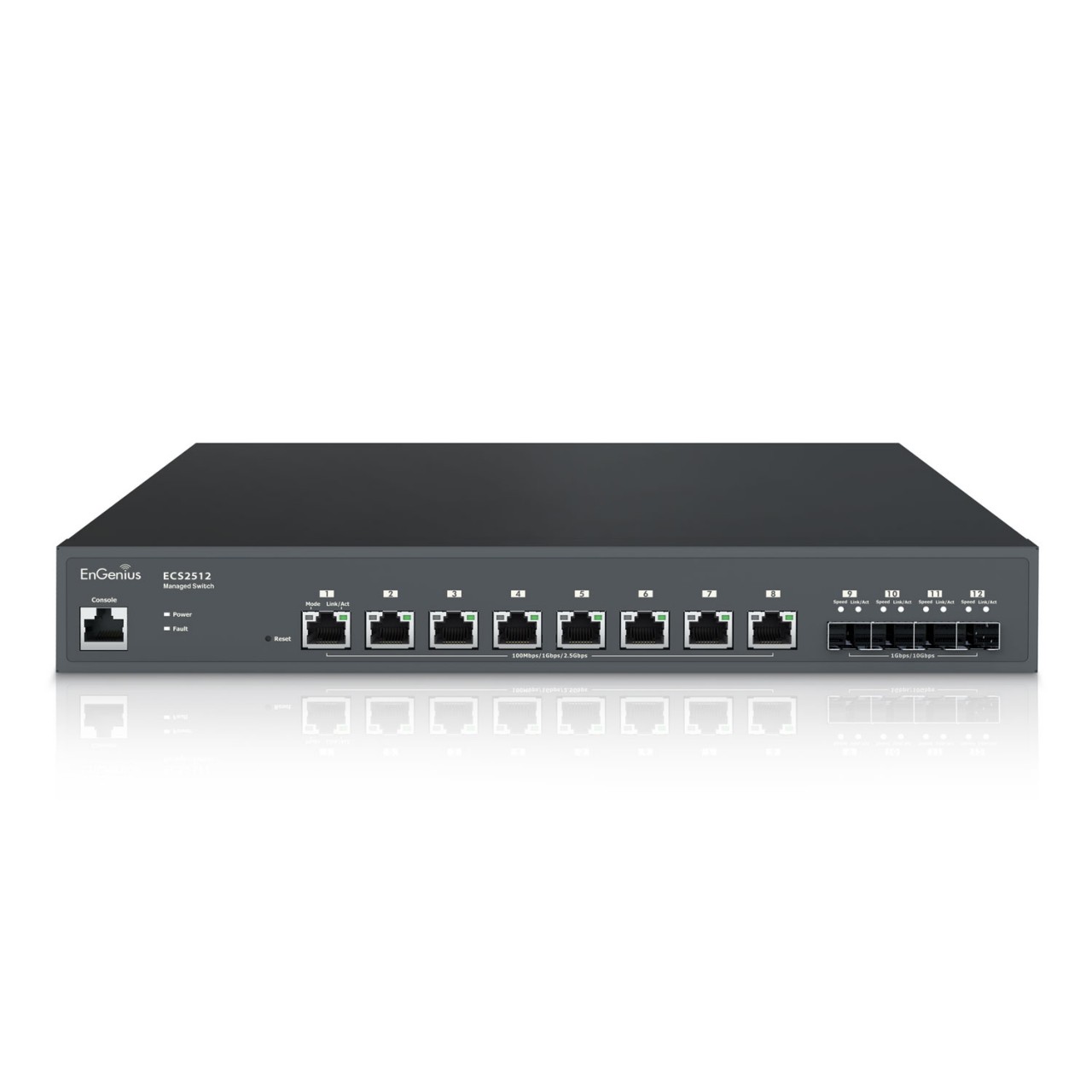

EnGenius Cloud Multi-Gigabit ECS2512 is an 8-Port, 2.5G per port, Layer 2+ Switch with 4 10G SFP+ uplink ports. Multi-Gig switches with enterprise-class features optimize network efficiency ensuring peak performance for large businesses. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or budget.Full-Featured Layer 2+ Switching

• 8 10/100/1000/2500 Base-T GbE Ports to serve high-bandwidth devices
• 120 Gbps Switching capacity for improved performance
• 4 Dual-Speed 10G SFP+ (fiber) uplink ports
• Security - Access Control List/Port Security; 802.1X & RADIUS Authentication

Technical Specifications

Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3bz 2500Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports
8 10/100/1000/2500 Mbps Ports + 4x SFP+ Ports

Switching Capacity
120Gbps

SDRAM
512MB

Flash Memory
128MB

Power Source
100 ~ 240VAC, 50-60Hz

Physical Interface

LED Indicators
Power LED
Fault LED

Ports
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)

Multiple IP Interface
20 IPv6 address

ARP Table
Max. 192 ARP entries

Static ARP
Static 192 ARP entries

IPv4 Static Route
Max. 63 entries

IPv6 Static Route
Max. 21 entries

MAC Address Table
16K

Jumbo Frame
9K

Multicast Group
Max 256 groups

MLD Snooping
MLD Snooping: v1

QoS-Number of Priority Queues Supported
Queue 8

Trust Mode
Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism
Strict / WRR/ Strict + WRR

Bandwidth Control
Port-based bandwidth control (Ingress/Egress)

Port Security
Max. 256 Entries

Access Control List (ACL)
MAC-based ACL
IPv4/IPv6-based ACL
ACL Binding
Time-based ACL
