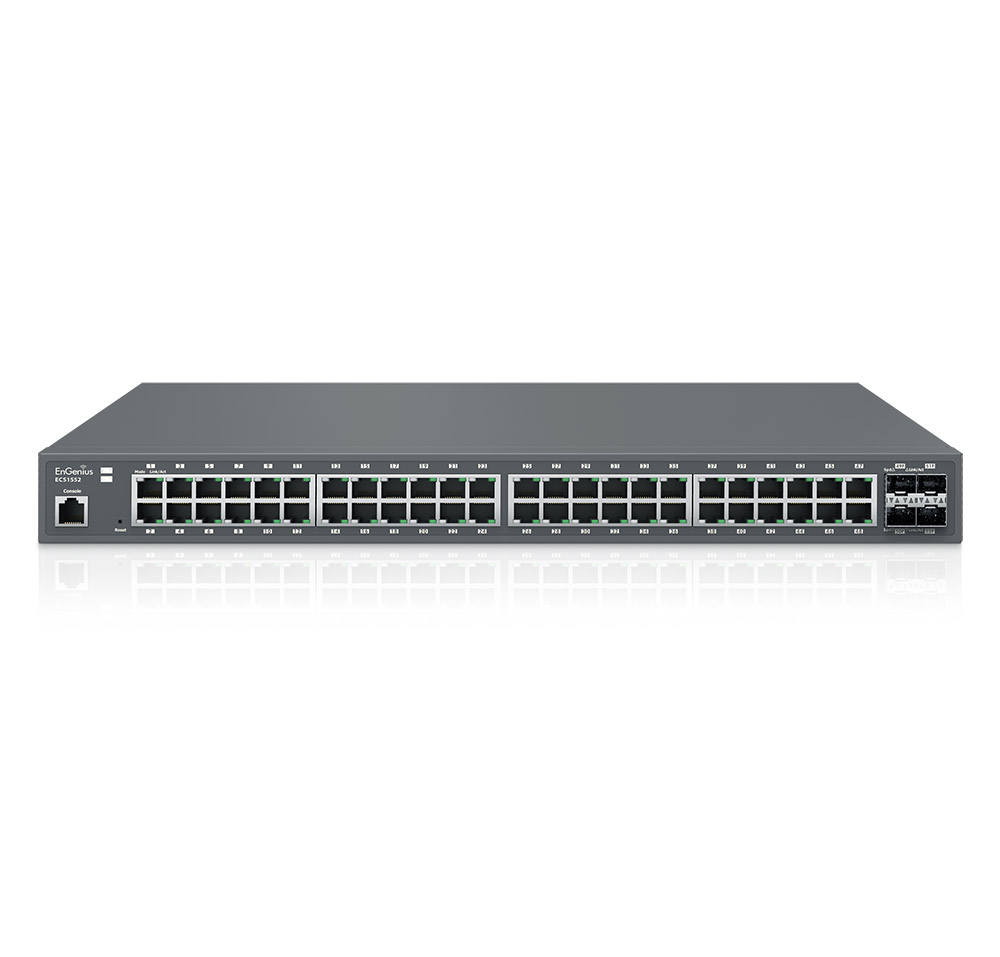

EnGenius ECS1552 Cloud Managed 48-Port Gigabit Switch with 4 SFP+ Ports

รูปภาพ 1
  • รูปภาพ 1
  • รูปภาพ 2
  • รูปภาพ 3
  • รูปภาพ 4
ราคาเต็ม:
25,900.00฿
ราคารวม:
20,930.00฿ (คุณประหยัดเงิน 4,970.00฿)
รหัสสินค้า:
ECS1552
ยี่ห้อ:
EnGenius
ค่าจัดส่ง:
คำนวณเมื่อชำระเงิน
จำนวน:

คุณสมบัติของสินค้า

EnGenius Cloud ECS1552 is a 48-Port Gigabit Layer 2+ Switch with 4 10-Gigabit SFP+ Uplink Ports. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for large businesses.

  • 48 10/100/1000 Base-T GbE Ports
  • Full-Featured Layer 2+ Switching
  • 176 Gbps Switching capacity
  • 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports
  • Security - Access Control List/Port Security; 802.1X & RADIUS Authentication
  • IGMP & MLD snooping provides advanced multicast filtering & network efficiency

Technical Specifications

Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports
48 10/100/1000 Mbps Ports + 4x SFP+ Ports

Switching Capacity
176Gbps

SDRAM
512MB

Flash Memory
128MB

Power Source
100 ~ 240VAC, 50-60Hz

Physical Interface

LED Indicators
Power LED
Fault LED

Ports
Link/Activity/Speed (per Ethernet port)



Software Features (L3 Features)

Multiple IP Interface
20 IPv6 address

ARP Table
Max. 192 ARP entries

Static ARP
Static 192 ARP entries

IPv4 Static Route
Max. 63 entries

IPv6 Static Route
Max. 21 entries



Software Features (L2 Features)

Multiple IP Interface
20 IPv6 address

ARP Table
Max. 192 ARP entries

Static ARP
Static 192 ARP entries

IPv4 Static Route
Max. 63 entries

IPv6 Static Route
Max. 21 entries

Software Features(L2 Feature)
MAC Address Table
32K

Jumbo Frame
9K

Multicast Group
Max 256 groups

MLD Snooping
MLD Snooping: v1

QoS-Number of Priority Queues Supported
Queue 8

Trust Mode
Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism
Strict / WRR/ Strict + WRR

Bandwidth Control
Port-based bandwidth control (Ingress/Egress)

Port Security
Max. 256 Entries

Access Control List (ACL)
MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Time Based ACL



Web Graphical User Interface (GUI)
HTTP IPv4 / IPv6
HTTPS IPv4 / IPv6

SSL Certificate
Certificate/Key Import

SNMP
SNMP v1/v2c/v3 Support

RMON
RMON 1,2,3,9

System Time
Time Setting/Daylight saving

Common L2 Features
802.1d Spanning tree
Loopback Detection
Multicast Filtering
IGMP Multicast Forwarding
IGMP Snooping
MLD Multicast Forwarding
802.1Q VLAN tagging
802.3x flow control
802.3ad Link Aggregation
IPv4 DHCP Relay
IPv4 DHCP Snooping
IPv4 DHCP Snooping Source MAC Address Check-up
ARP Inspection
ARP Packet Validation (additional validation checks)
Voice VLAN
Port-based VLAN
Protocol-Based VLAN
CoS Mapping
802. 1X Radius Authentication Protocol
IPv4 Settings
IPv6 Settings
IEEE 802. 3az Energy Efficient Ethernet (EEE)
Command Line Interface (CLI)
SSH Server
Telnet Server
TFTP Client
Configuration Upgrade/Backup
Simple Network Time Protocol (SNTP)
SYSLOG
802.1d Spanning tree



Environmental & Physical

Temperature Range
Operating: 32°F to 122°F (0°C to 50°C)

Humidity (Non-Condensing)
Operating: 5% - 95%

Package Contents
1x Cloud Managed Gigabit Switch
1x Quick Installation Guide
1x Power Cord
1x RJ45 Console Cable
1x Rack Mount Kit



Device Dimensions & Weights

ECS1552 Device:
Weight: 8.17 lbs. (3.71kg)
Width: 17.32 lbs. (440 mm)
Length: 10.23 lbs. (260 mm)
Height: 1.73 lbs. (44 mm)

Packaging
Weight: 9.34” (4.24 kg)
Width: 13.74” (349 mm)
Length: 21.06” (535 mm)
Height: 4.09” (104 mm)

การรับประกัน

ประกันศูนย์ไทย 5 ปี
