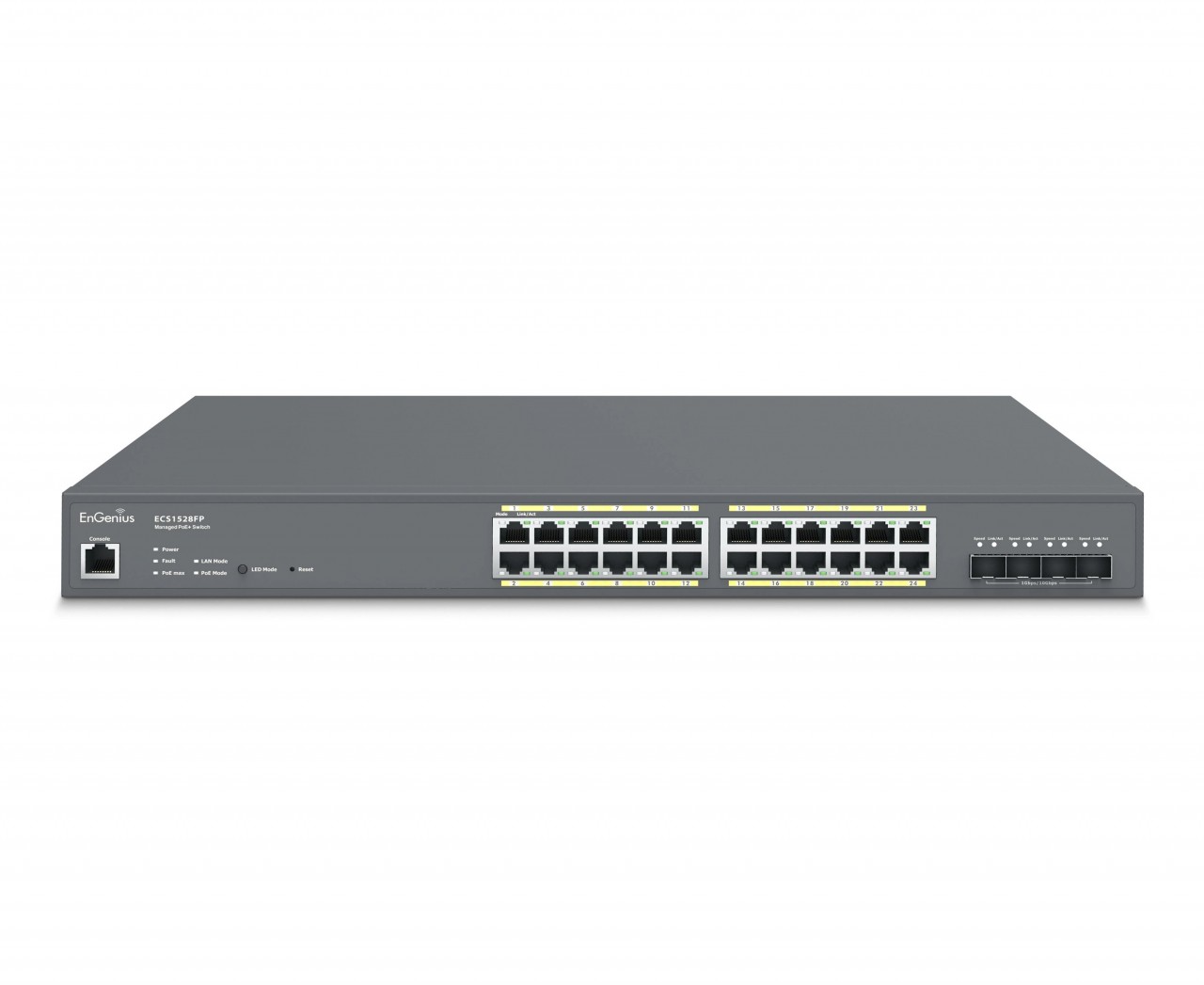

EnGenius Cloud ECS1528FP, a 24-Port Gigabit PoE+ Layer 2+ Switch with a 410W Budget, 4 10-Gigabit SFP+ Uplink Ports. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for SMBs.

• 24 10/100/1000 Base-T GbE Ports
• Full-Featured Layer 2+ Switching
• 802.3 at/af PoE+ Ready on All Ports with 410W PoE budget
• 128 Gbps Switching capacity
• 4 10-Gigabit Dual-Speed SFP+ (fiber) uplink ports

Available with Hardware v2 and Later

• PoE Extended Mode - Extend PoE Ethernet cable deploying range up to 250 meters
• PD Lifeguard - Real-time detecting and auto-reboot PoE power for failed camera
• Continuous PoE Power - Steady supply of PoE power for camera during switch upgrades

Technical Specifications

Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports
24 10/100/1000 Mbps Ports + 4x SFP+ Ports

Switching Capacity
128Gbps

SDRAM
512MB

Flash Memory
128MB

PoE+ Capable Ports
1-24

Total PoE Budget
410W

Power Source
100 ~ 240VAC, 50-60Hz

Physical Interface

LED Indicators
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED

Ports
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)

Multiple IP Interface
20 IPv6 address

ARP Table
Max. 192 ARP entries

Static ARP
Static 192 ARP entries

IPv4 Static Route
Max. 63 entries

IPv6 Static Route
Max. 21 entries

MAC Address Table
16K

Jumbo Frame
10K

Multicast Group
Max 256 groups

MLD Snooping
MLD Snooping: v1

QoS-Number of Priority Queues Supported
Queue 8

Trust Mode
Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism
Strict / WRR/ Strict + WRR

Bandwidth Control
Port-based bandwidth control (Ingress/Egress)

Port Security
Max. 256 Entries

Access Control List (ACL)
MAC Based ACL
IPv4/IPv6 Based ACL
ACL Binding
Time base ACL
