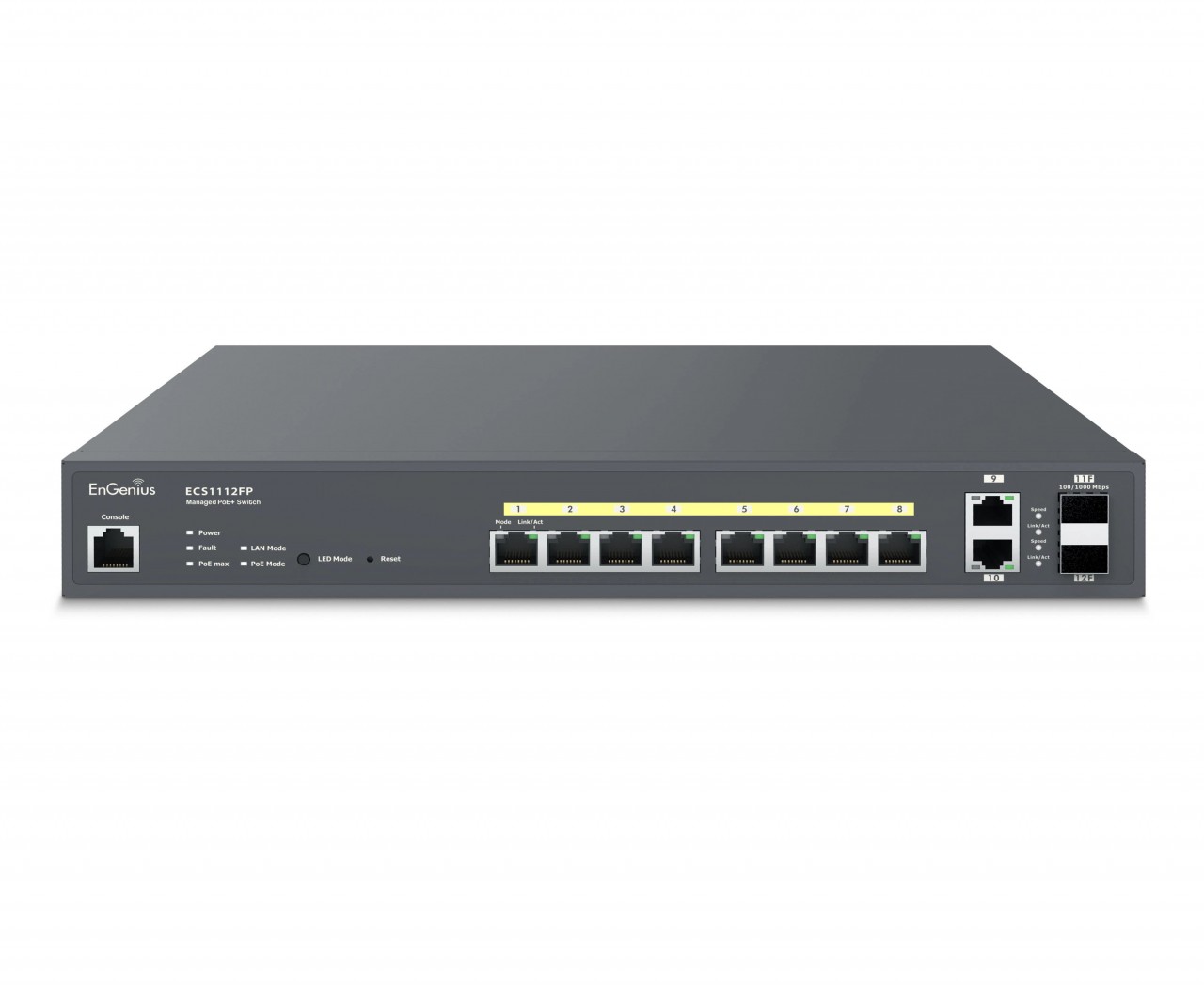

EnGenius Cloud ECS1112FP, an 8-Port Gigabit PoE+ Layer 2+ Switch with 130W Budget, 2 GbE and 2 Dual-Speed SFP ports for uplinks. Select Cloud or on-premises management options based on network architecture, administrative permissions, technical aptitude, or even budget. Enterprise-class features optimize network efficiency ensuring peak performance for SMBs.

• 8 10/100/1000 Base-T GbE Ports
• Full-Featured Layer 2+ Switching
• 802.3 at/af PoE+ Ready on All Ports with 130W PoE budget
• 24 Gbps Switching capacity
• 2 Gigabit Ethernet Port and 2 Dual-Speed SFP (fiber) uplink ports

Technical Specifications

Port Standards
802.3 10Base-T Ethernet
802.3u 100Base-TX Ethernet
802.3ab 1000Base-T Ethernet
802.3x Full-Duplex Flow Control

Network Ports
10 10/100/1000 Mbps Ports + 2x SFP Ports

Switching Capacity
24Gbps

SDRAM
256MB

Flash Memory
32MB

PoE+ Capable Ports
1-8

Total PoE Budget
130W

Power Source
100 ~ 240VAC, 50-60Hz

Physical Interface

LED Indicators
Power LED
Fault LED
PoE Max LED
LAN Mode LED
PoE Mode LED

Ports
Link/Activity/Speed (per Ethernet port)
Link/Activity/Speed (per SFP slot)

Multiple IP Interface
20 IPv6 address

ARP Table
Max. 192 ARP entries

Static ARP
Static 192 ARP entries

IPv4 Static Route
Max. 63 entries

IPv6 Static Route
Max. 21 entries

MAC Address Table
8K

Jumbo Frame
9K

Multicast Group
Max 256 groups

MLD Snooping
MLD Snooping: v1

QoS-Number of Priority Queues Supported
Queue 8

Trust Mode
Cos/802.1p
DSCP
CoS/802.1p-DSCP

Scheduling Mechanism
Strict / WRR/ Strict + WRR

Bandwidth Control
Port-based bandwidth control (Ingress/Egress)
