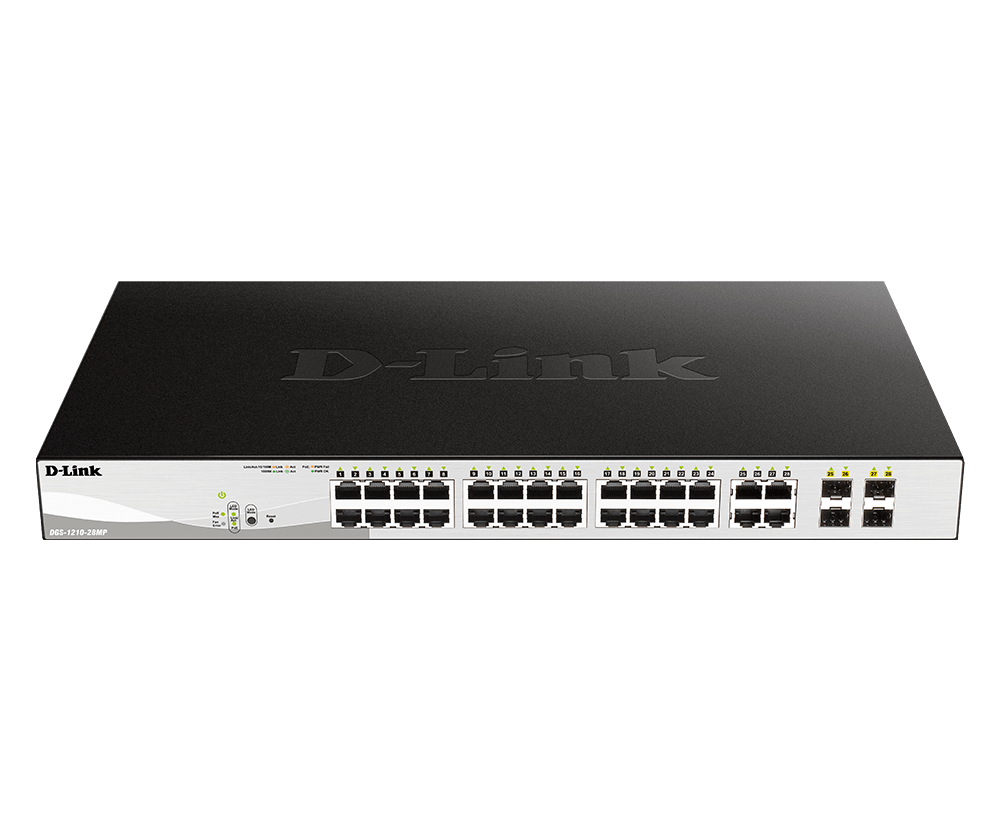

D-LINK DGS-1210-28MP 28-Port Gigabit Smart Managed PoE Switch

รูปภาพ 1
  • รูปภาพ 1
  • รูปภาพ 2
  • รูปภาพ 3
ราคาเต็ม:
15,900.00฿
ราคารวม:
13,900.00฿ (คุณประหยัดเงิน 2,000.00฿)
รหัสสินค้า:
DGS-1210-28MP
ยี่ห้อ:
D-Link
ค่าจัดส่ง:
คำนวณเมื่อชำระเงิน
จำนวน:

คุณสมบัติของสินค้า

24 x 10/100/1000BASE-T PoE ports
4 x Gigabit GbE/SFP combo ports
Advanced L2 switching and security features
L2+ Static Routing
Optional “standard mode” or “surveillance mode” management user interface
370W PoE budget

Specifications

1000Base-T PoE Interface 24
Combo 1000Base-T/SFP 4
Auto MDI/MDIX Yes
10/100/1000BASE-T PoE ports 24
Combo 10/100/1000BASE-T/SFP ports 4
Switch Capacity 56 Gbps
Max. Packet Forwarding Rate 41.7 Mpps
Store & Forwarding Forwading Yes
Operation Temperature -5 - 50°C
Dimension 440mm x 250 mm x 44mm
Weight 3.94 kg
Storage Temperature -20-70°C
Operation Humidity 0% - 95% RH
Storage Humidity 0% ~ 95% RH
Operating Altitude 1500 meters
Maximum Power Consumption PoE on <br>446.1 W/100 V <br>424.8 W/240 V<br> PoE off <br>29.8 W/100 V <br>29.0 W/240 V
Standby Power Consumption 18.5 W/100V / 17.1 W/240V
Maximum Heat Dissipation 1521.99 BTU/hr (100 V) <br>1449.49 BTU/hr (240 V)
MTBF 277,967 hours
CPU Speed 500MHz
Flash Memory Size 32MB
Packet Buffer Size 4.1MBits
DRAM Size DDR3 128MB
FAN Yes
Power Input 100-240 VAC
Comply with RoHS 6 Yes
Energy Efficiency Ethernet (EEE) Yes
Power Saving By Link Status Yes
Power Saving By Cable Length Yes
Power Saving By Port Shut-Off Yes
Power Saving By System Hibernation Yes
Time-based PoE Yes
Maximum PoE Budget 370W
PoE Budget 370 W
802.3x Flow Control Yes
Head-of-line (HOL) Blocking Prevention Yes
MAC Address Table Size 8K
802.1D Spanning Tree (STP) Yes
802.1w Rapid Spanning Tree (RSTP) Yes
802.1s Multiple Spanning Tree (MSTP) Yes
Root Restriction Yes
802.3ad Link Aggregation Yes
Link Aggregation Group Per Device 4
Max Port Per Link Aggregation Group 8
Port Mirroring Yes
Jumbo Frame 10,000 Bytes
Loopback Detection (LBD) Yes
IGMP Snooping Yes
Max IGMP Snooping Groups 256
IGMP Snooping Fast Leave Yes
MLD Snooping Yes
MLD Snooping Groups Yes
MLD Snooping Fast Leave Yes
802.1Q VLAN Yes
VLAN Groups Yes
Port-based VLAN Yes
Voice VLAN Yes
Auto Surveillance VLAN Yes
Asymmetric VLAN Yes
ARP Yes
IP Interface Yes
Max Number of IP Interface 4
ARP Entries Yes
IPv6 Neighbor Discovery (ND) Yes
ND Entries 128
Default Route Yes
Static Route Yes
Class of Service (CoS) Yes
Number of Queue Yes
Strict Priority Queue (SPQ) Yes
Weighted Round Robin (WRR) Yes
Port-based Bandwidth Control Yes
Max Access Control List (ACL) Entries Yes
MAC Access List Yes
IP Access List Yes
IPv6 Access List Yes
SSH Yes
SSL Yes (only support TLS 1.0)
Port Security Yes
Broadcast/Multicast/Unicast Storm Control Yes
Traffic Segmentation Yes
Smart IP-MAC-Port Binding (Smart IMPB) Yes
D-Link Safeguard Engine Yes
DHCP Server Screening Yes
ARP Spoofing Prevention Yes
DoS Attack Prevention Yes
802.1X Yes
Port based 802.1X Authentication Yes
Authentication for Management Access Yes
RADIUS Yes
Trusted Host Yes
Cable Diagnostics Yes
Simple Network Time Protocol (SNTP) Yes
Web-based GUI Yes
SNMP Trap Yes
SNMP Yes
Telnet Server Yes
RMONv1 Yes
TFTP Client Yes
System Log Yes
D-Link Discover Protocol (DDP) Yes (v0.26)
LLDP-MED Yes
LLDP Yes
Dual Images Yes
DHCP relay Yes
DHCP/BootP Client Yes
Ping Yes
Dual Configurations Yes
D-Link Network Assistant Yes (Chrome edition)
Debug Command Yes
Smart Wizard Yes

การรับประกัน

ประกันศูนย์ Limited Lifetime
