• Ultrafast WiFi 6 - Enjoy speeds up to 5400 Mbps and 4X network efficiency with OFDMA and 160 MHz channels.
• Fast & Stable Wired Gaming - Dedicated gaming port to prioritize connected gaming device.
• Easy Port Forwarding in 3 Steps - Open NAT makes port forwarding simple, eliminating frustrating and complicated manual configuration.
• ASUS AiMesh Support – Create a flexible, seamless whole-home mesh network with AiMesh-compatible routers.
• Tested Durability and Stable Operation - TUF Gaming AX5400 is built to be durable and undergoes verified testing to ensure reliable, stable operation.

Product Segment

• AX5400 ultimate AX performance : 574+4804 Mbps

Data Rate

• 802.11a : up to 54 Mbps
• 802.11b : up to 11 Mbps
• 802.11g : up to 54 Mbps
• 802.11n: สูงสุด 300 Mbps
• WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
• WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps

Antenna

• External antenna x 6

Transmit/Receive

• 2.4GHz 2x2
• 5GHz-2 4x4

Processor

• 1.5 GHz tri-core processor

Memory

• 256 MB Flash
• 512 MB RAM

Boosts speed

• OFDMA (Orthogonal Frequency Division Multiple Access)
• Beamforming: standard-based and universal
• 1024-QAM high data rate
• 20/40/80/160 MHz bandwidth

Operating Frequency

• 2.4G Hz / 5 GHz

Ports

• RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
• USB 3.2 Gen 1 x 1

Button

• WPS Button, Reset Button, Power Button
• LED Indicator
• Power x 1
• 2.4GHz x 1
• 5GHz x 1
• WAN x 1
• LAN x 4

Power Supply

• AC Input : 100V~240V (50~60Hz)
• DC Output : 12 V with max. 2.5 A current

Package content

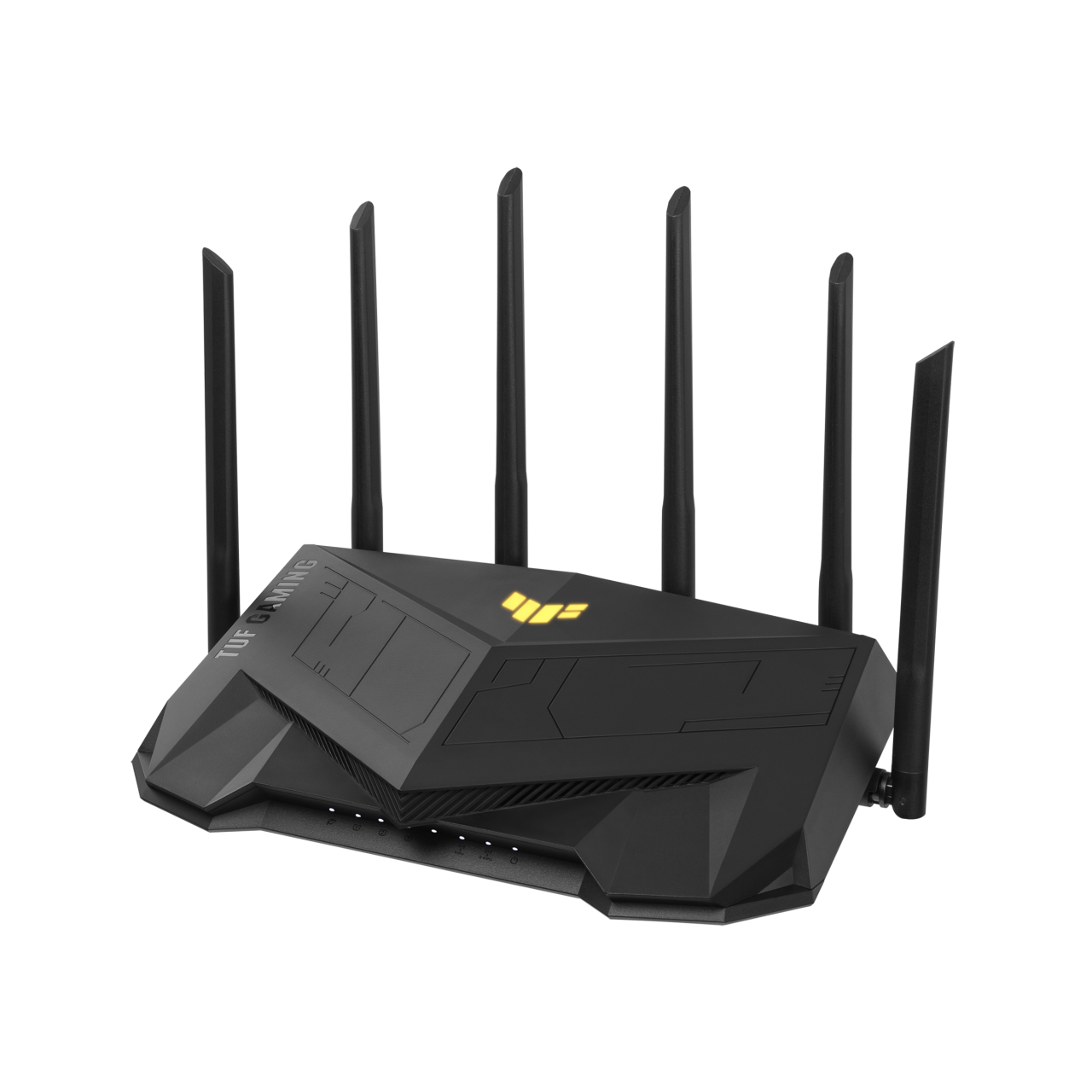

• TUF Gaming AX5400 WiFi 6 router
• RJ-45 cable
• Power adapter
• Quick Start Guide

Product Weight (g)

• 600 g

AiMesh

• AiMesh
• Primary AiMesh router
• AiMesh node

Router APP

• ASUS Router APP

Game

• Game Boost / Acceleration

Alexa

• Support Alexa skill

AiProtection

• AiProtection Pro
• AiProtection
• Malicious site blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

Parental Control

• Parental Control
• Parental Control Customized Internet schedule

Traffic Control

• Adaptive QoS
• Bandwidth Monitor
• Bandwidth limiter
• Maximum Bandwidth limiter rule : 32
• Traditional QoS
• Maximum Traditional QoS rule : 32
• Traffic Monitor
• Real-time traffic monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
• Traffic Analyzer
• Traffic analysis period : Daily, Weekly, Monthly
• Website history

Wireless

• IPv6
• Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
• UTF-8 SSID
• Guest Network
• Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
• Guest Network Connection time limit
• WPS
• WiFi MAC address filter
• Maximum MAC filters : 64
• Wireless scheduler
• Airtime fairness
• RADIUS Client
• Universal beamforming
• Explicit beamforming

WAN

• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• Dual WAN
• WAN Aggregation
• 3G/4G LTE dongle
• Android tethering
• Port forwarding
• Maximum port forwarding rule : 64
• Port triggering
• Maximum port triggering rule : 32
• DMZ
• DDNS
• NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
• Safe browsing
• DNS-over-TLS
• LAN
• DHCP Server
• IPTV
• LAN Link Aggregation
• Manually assign IP address
• Maximum manually assign IP address rule : 64

VPN

• VPN Client L2TP
• VPN Client OVPN
• VPN Client PPTP
• VPN Client WireGuard
• VPN Server IPSec
• VPN Server OVPN
• VPN Server PPTP
• VPN Server WireGuard
• VPN Fusion

USB application

• File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
• 3G/4G LTE dongle
• HDD hibernation
• Safely Remove disk
• AiCloud
• Download master
• AiDisk
• Media Server
• Time Machine
• Samba Server
• FTP Server
• Shared Folder privileges

Administration

• Operating mode : Wireless router mode,  Access point mode, Media bridge mode, Repeater mode, AiMesh node mode
• Operating system : ASUSWRT
• Free OS upgrade
• Firewall
• Maximum Firewall keyword filter : 64
• Maximum Firewall network service filter : 32
• Maximum Firewall URL filter : 64
• SSH
• Wake on LAN (WOL)
• Configuration backup and restore
• Diagnosis tools
• Feedback system
• System log
• New Device Connect Notification
• Login Captcha
• Connection Diagnosis
• Security Scan
• Auto Firmware Update
